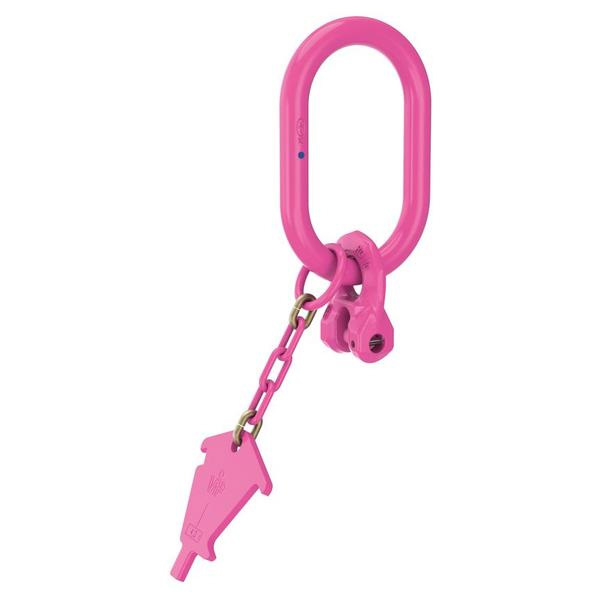

ห่วงเหล็กแม่-ลูก หนึ่งขารุ่น VIP, เกรด 100
• ห่วงเหล็กแม่-ลูกหนึ่งขามาพร้อมตัวเชื่อม VRG ที่หมุนได้ทุกทิศทาง ซึ่งตัวเชื่อมนี้ จะสามารถประกอบเข้ากับโซ่ที่มีขนาดพอดีกันเท่านั้น ทำให้ผู้ใช้งานมั่นใจได้ว่าใช้โซ่ขนาดถูกต้องและมีจำนวนขาตามที่ระบุในคู่มือ
• ห่วงเหล็กแม่-ลูกถูกทำเครื่องหมายโดย RUD-ID-TAG® (ชิป RFID) ด้วยหมายเลขเฉพาะตัวที่แตกต่างกัน
• ตัวแท็กมาพร้อมข้อมูลมาตรวัดการทดสอบโซ่
• สลักเกลียวเชื่อมต่อและปลอกปรับความตึงถูกประกอบไว้ล่วงหน้า
• ขนาดสอดคล้องกับลิงค์ประเภท A ตามมาตรฐาน DIN 5688 และผลิตขึ้นตามมาตรฐาน EN 1677-4

VIP-Master link single strand VAK 1/2-4 (7984445)

Article number: 7100681

Attribute	Value	Value
Attributeweight	Value0.54 kg	Value1.19 lbs
AttributeNominal WLL	Value1500 kg	Value3300 lbs
AttributeT	Value138 mm	Value5-7/16"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value60 mm	Value2-3/8"
AttributeC	Value110 mm	Value4-11/32"

VIP-Master link single strand VAK 1-8 (7100682)

Article number: 7100682

Attribute	Value	Value
Attributeweight	Value0.90 kg	Value1.98 lbs
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value147 mm	Value5-25/32"
AttributeA	Value16 mm	Value5/8"
AttributeB	Value60 mm	Value2-3/8"
AttributeC	Value110 mm	Value4-11/32"

VIP-Master link single strand VAK 1-10 (7100683)

Article number: 7100683

Attribute	Value	Value
Attributeweight	Value1.44 kg	Value3.17 lbs
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value181 mm	Value7-1/8"
AttributeA	Value18 mm	Value11/16"
AttributeB	Value75 mm	Value2-15/16"
AttributeC	Value135 mm	Value5-5/16"

VIP-Master link single strand VAK 1-13 (7100684)

Article number: 7100684

Attribute	Value	Value
Attributeweight	Value2.68 kg	Value5.91 lbs
AttributeNominal WLL	Value6700 kg	Value15000 lbs
AttributeT	Value218 mm	Value8-5/8"
AttributeA	Value22 mm	Value7/8"
AttributeB	Value90 mm	Value3-17/32"
AttributeC	Value160 mm	Value6-13/32"

VIP-Master link single strand VAK 1-16 (7100685)

Article number: 7100685

Attribute	Value	Value
Attributeweight	Value4.35 kg	Value9.57 lbs
AttributeNominal WLL	Value10000 kg	Value22000 lbs
AttributeT	Value250 mm	Value9-13/16"
AttributeA	Value26 mm	Value1"
AttributeB	Value100 mm	Value3-15/16"
AttributeC	Value180 mm	Value7-1/16"

VIP-Master link single strand VAK 1-20 (7104089)

Article number: 7104089

Attribute	Value	Value
Attributeweight	Value14.74 kg	Value32.3 lbs
AttributeNominal WLL	Value16000 kg	Value35300 lbs
AttributeT	Value434 mm	Value17-1/16"
AttributeA	Value40 mm	Value1-9/16"
AttributeB	Value180 mm	Value7-1/16"
AttributeC	Value340 mm	Value13-3/8"

VIP-Master link single strand VAK 1-22 (7100686)

Article number: 7100686

Attribute	Value	Value
Attributeweight	Value17.99 kg	Value39.6 lbs
AttributeNominal WLL	Value20000 kg	Value44000 lbs
AttributeT	Value434 mm	Value17-1/16"
AttributeA	Value45 mm	Value1-3/4"
AttributeB	Value180 mm	Value7-1/16"
AttributeC	Value340 mm	Value13-3/8"

VIP-MAXI-Master link single strand VAK 1/2-28 (7900642)

Article number: 7900642

Attribute	Value	Value
Attributeweight	Value64.30 kg	Value141.76 lbs
AttributeNominal WLL	Value31500 kg	Value69300 lbs
AttributeT	Value360 mm	Value14-5/32"
AttributeA	Value100 mm	Value3-15/16"
AttributeB	Value250 mm	Value9-13/16"
AttributeC	Value280 mm	Value11"
AttributeD	Value208 mm	Value8-3/16"
AttributeE	Value120 mm	Value4-3/4"
AttributeF	Value76 mm	Value3"

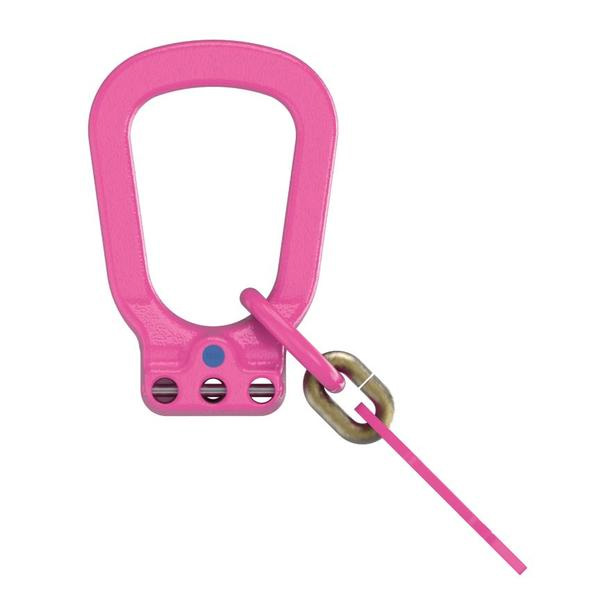

VIP-Master link for single leg VBK 1-6 (7100675)

Article number: 7100675

Attribute	Value	Value
Attributeweight	Value0.38 kg	Value0.83 lbs
AttributeNominal WLL	Value1500 kg	Value3300 lbs
AttributeT	Value82 mm	Value3-1/4"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value25 mm	Value1"
AttributeC	Value54 mm	Value2-1/8"

VIP-Master link for single leg VBK 1-8 (7100676)

Article number: 7100676

Attribute	Value	Value
Attributeweight	Value0.72 kg	Value1.58 lbs
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value107 mm	Value4-3/16"
AttributeA	Value16 mm	Value5/8"
AttributeB	Value34 mm	Value1-5/16"
AttributeC	Value70 mm	Value2-3/4"

VIP-Master link for single leg VBK 1-10 (7100677)

Article number: 7100677

Attribute	Value	Value
Attributeweight	Value1.15 kg	Value2.54 lbs
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value131 mm	Value5-3/16"
AttributeA	Value18 mm	Value11/16"
AttributeB	Value40 mm	Value1-9/16"
AttributeC	Value85 mm	Value3-11/32"

VIP-Master link for single leg VBK 1-13 (7100678)

Article number: 7100678

Attribute	Value	Value
Attributeweight	Value2.21 kg	Value4.87 lbs
AttributeNominal WLL	Value6700 kg	Value15000 lbs
AttributeT	Value174 mm	Value6-7/8"
AttributeA	Value22 mm	Value7/8"
AttributeB	Value50 mm	Value1-31/32"
AttributeC	Value115 mm	Value4-1/2"

VIP-Master link for single leg VBK 1-16 (7100679)

Article number: 7100679

Attribute	Value	Value
Attributeweight	Value3.84 kg	Value8.45 lbs
AttributeNominal WLL	Value10000 kg	Value22000 lbs
AttributeT	Value211 mm	Value8-5/16"
AttributeA	Value26 mm	Value1"
AttributeB	Value65 mm	Value2-9/16"
AttributeC	Value140 mm	Value5-1/2"

VIP-Master link for single leg VBK 1-20 (7104092)

Article number: 7104092

Attribute	Value	Value
Attributeweight	Value7.65 kg	Value16.8 lbs
AttributeNominal WLL	Value16000 kg	Value35300 lbs
AttributeT	Value264 mm	Value10-3/8"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value75 mm	Value2-15/16"
AttributeC	Value170 mm	Value6-3/4"

VIP-Master link for single leg VBK 1-22 (7100680)

Article number: 7100680

Attribute	Value	Value
Attributeweight	Value9.02 kg	Value19.84 lbs
AttributeNominal WLL	Value20000 kg	Value44000 lbs
AttributeT	Value294 mm	Value11-9/16"
AttributeA	Value36 mm	Value1-13/32"
AttributeB	Value110 mm	Value4-11/32"
AttributeC	Value200 mm	Value7-7/8"

VIP-MAXI-Master link for 1 strand VBK 1/2-28 (8504022)

Article number: 8504022

Attribute	Value	Value
Attributeweight	Value31.93 kg	Value70.39 lbs
AttributeNominal WLL	Value31500 kg	Value69300 lbs
AttributeT	Value322 mm	Value12-21/32"
AttributeA	Value60 mm	Value2-3/8"
AttributeB	Value190 mm	Value7-1/2"
AttributeC	Value265 mm	Value10-7/16"
AttributeD	Value240 mm	Value9-1/2"
AttributeE	Value120 mm	Value4-3/4"
AttributeF	Value55 mm	Value2-5/32"

VIP special master link one strand VSAK 1-6/140 (7100687)

Article number: 7100687

Attribute	Value	Value
Attributeweight	Value1.95 kg	Value4.3 lbs
AttributeNominal WLL	Value1500 kg	Value3300 lbs
AttributeT	Value342 mm	Value13-7/16"
AttributeA	Value18 mm	Value11/16"
AttributeB	Value140 mm	Value5-1/2"
AttributeC	Value260 mm	Value10-1/4"

VIP special master link one strand VSAK 1-8/140 (7100688)

Article number: 7100688

Attribute	Value	Value
Attributeweight	Value3.20 kg	Value4.84 lbs
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value367 mm	Value14-7/16"
AttributeA	Value22 mm	Value7/8"
AttributeB	Value140 mm	Value5-1/2"
AttributeC	Value260 mm	Value10-1/4"

VIP special master link one strand VSAK 1-8/190 (7100692)

Article number: 7100692

Attribute	Value	Value
Attributeweight	Value3.67 kg	Value8.07 lbs
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value457 mm	Value18"
AttributeA	Value22 mm	Value7/8"
AttributeB	Value190 mm	Value7-1/2"
AttributeC	Value350 mm	Value13-3/4"

VIP special master link one strand VSAK 1-10/140 (7100689)

Article number: 7100689

Attribute	Value	Value
Attributeweight	Value3.40 kg	Value7.5 lbs
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value391 mm	Value15-3/8"
AttributeA	Value26 mm	Value1"
AttributeB	Value140 mm	Value5-1/2"
AttributeC	Value260 mm	Value10-1/4"

VIP special master link one strand VSAK 1-10/190 (7100693)

Article number: 7100693

Attribute	Value	Value
Attributeweight	Value5.34 kg	Value11.75 lbs
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value481 mm	Value18-7/8"
AttributeA	Value26 mm	Value1"
AttributeB	Value190 mm	Value7-1/2"
AttributeC	Value350 mm	Value13-3/4"

VIP special master link one strand VSAK 1-10/250 (7100696)

Article number: 7100696

Attribute	Value	Value
Attributeweight	Value11.77 kg	Value25.95 lbs
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value591 mm	Value23-1/4"
AttributeA	Value36 mm	Value1-27/64"
AttributeB	Value250 mm	Value9-13/16"
AttributeC	Value460 mm	Value18-1/8"

VIP special master link one strand VSAK 1-13/140 (7100690)

Article number: 7100690

Attribute	Value	Value
Attributeweight	Value7.35 kg	Value16.17 lbs
AttributeNominal WLL	Value6700 kg	Value15000 lbs
AttributeT	Value433 mm	Value17-1/16"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value140 mm	Value5-1/2"
AttributeC	Value260 mm	Value10-1/4"

VIP special master link one strand VSAK 1-13/190 (7100694)

Article number: 7100694

Attribute	Value	Value
Attributeweight	Value8.70 kg	Value19.15 lbs
AttributeNominal WLL	Value6700 kg	Value15000 lbs
AttributeT	Value523 mm	Value20-9/16"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value190 mm	Value7-1/2"
AttributeC	Value350 mm	Value13-3/4"

VIP special master link one strand VSAK 1-13/250 (7100697)

Article number: 7100697

Attribute	Value	Value
Attributeweight	Value12.83 kg	Value28.23 lbs
AttributeNominal WLL	Value6700 kg	Value15000 lbs
AttributeT	Value634 mm	Value24-15/16"
AttributeA	Value36 mm	Value1-7/16"
AttributeB	Value250 mm	Value9-13/16"
AttributeC	Value460 mm	Value18-1/8"

VIP special master link one strand VSAK 1-16/140 (7100691)

Article number: 7100691

Attribute	Value	Value
Attributeweight	Value8.96 kg	Value19.7 lbs
AttributeNominal WLL	Value10000 kg	Value22000 lbs
AttributeT	Value471 mm	Value18-9/16"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value140 mm	Value5-1/2"
AttributeC	Value260 mm	Value10-1/4"
