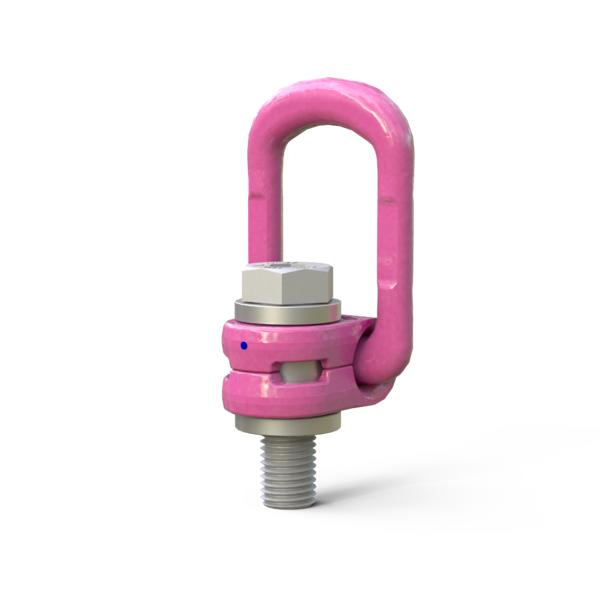

VLBG แหวนโหลด, เกลียวเมตริก

ผ่านการทดสอบโหลดแล้ว – รับ WLL เต็มรูปแบบในทุกทิศทาง!

- WLL สูงสุดที่มาพร้อม RUD-Bolt ที่สามารถรับน้ำหนักได้เพิ่มขึ้น
- ตัวหูหิ้วปรับได้ในทิศทางที่ต้องการยก
- มีสลักเกลียวครอบคลุมทุกขนาด ครบทุกมาตรฐานสากล
- นิยมใช้ยกชิ้นงานที่มีพื้นที่จำกัด และต้องใช้การยกด้านข้างโดยไม่โดนชิ้นงาน

Load ring VLBG 1,2t M14 with bolt (H=21) (8600399)

Article number: 8600399

Attribute	Value	Value
Attributeweight	Value0.52 kg	Value1.15 lbs
AttributeNominal WLL	Value1200 kg	Value2650 lbs
AttributeT	Value85 mm	Value3-11/32"
AttributeA	Value33 mm	Value1-5/16"
AttributeB	Value56 mm	Value2-3/16"
AttributeC	Value36 mm	Value1-27/64"
AttributeD	Value30 mm	Value1-3/16"
AttributeE	Value39 mm	Value1-9/16"
AttributeF	Value13,5 mm	Value17/32"
AttributeG	Value36 mm	Value1-27/64"
AttributeH	Value21 mm	Value13/16"
AttributeI	Value86 mm	Value3-3/8"
AttributeK	Value47 mm	Value1-7/8"
AttributeL	Value57 mm	Value2-1/4"
AttributeM	ValueM14 mm	ValueM14
AttributeN	Value38 mm	Value1-1/2"

Load ring VLBG 2t M18 with bolt (H=27) (8600384)

Article number: 8600384

Attribute	Value	Value
Attributeweight	Value1.3 kg	Value2.87 lbs
AttributeNominal WLL	Value2000 kg	Value4400 lbs
AttributeT	Value110 mm	Value4-11/32"
AttributeA	Value50 mm	Value1-31/32"
AttributeB	Value82 mm	Value3-1/4"
AttributeC	Value54 mm	Value2-1/8"
AttributeD	Value45 mm	Value1-25/32"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value16,5 mm	Value21/32"
AttributeG	Value43 mm	Value1-11/16"
AttributeH	Value27 mm	Value1-1/16"
AttributeI	Value113 mm	Value4-7/16"
AttributeK	Value64 mm	Value2-1/2"
AttributeL	Value70 mm	Value2-3/4"
AttributeM	ValueM18 mm	ValueM18
AttributeN	Value48 mm	Value1-7/8"

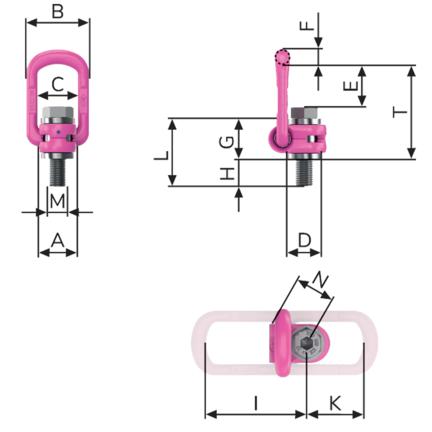

Load ring VLBG 2,5t M22 with bolt (H=33) (8600385)

Article number: 8600385

Attribute	Value	Value
Attributeweight	Value1.31 kg	Value2.89 lbs
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value110 mm	Value4-11/32"
AttributeA	Value50 mm	Value1-31/32"
AttributeB	Value82 mm	Value3-1/4"
AttributeC	Value54 mm	Value2-1/8"
AttributeD	Value45 mm	Value1-25/32"
AttributeE	Value54 mm	Value2-1/8"
AttributeF	Value16,5 mm	Value21/32"
AttributeG	Value43 mm	Value1-11/16"
AttributeH	Value33 mm	Value1-5/16"
AttributeI	Value113 mm	Value4-7/16"
AttributeK	Value64 mm	Value2-1/2"
AttributeL	Value75 mm	Value2-15/16"
AttributeM	ValueM22 mm	ValueM22
AttributeN	Value48 mm	Value1-7/8"

Load ring VLBG 4t M27 with bolt (7983658)

Article number: 7983658

Attribute	Value	Value
Attributeweight	Value3.35 kg	Value7.39 lbs
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value147 mm	Value5-25/32"
AttributeA	Value60 mm	Value2-3/8"
AttributeB	Value103 mm	Value4-1/16"
AttributeC	Value65 mm	Value2-9/16"
AttributeD	Value60 mm	Value2-3/8"
AttributeE	Value69 mm	Value2-23/32"
AttributeF	Value22,5 mm	Value7/8"
AttributeG	Value61 mm	Value2-13/32"
AttributeH	Value39 mm	Value1-9/16"
AttributeI	Value151 mm	Value5-15/16"
AttributeK	Value80 mm	Value3-1/8"
AttributeL	Value100 mm	Value3-15/16"
AttributeM	ValueM27 mm	ValueM27
AttributeN	Value67 mm	Value2-5/8"

Load ring VLBG 7t M36 with special-bolt (8500829)

Article number: 8500829

Attribute	Value	Value
Attributeweight	Value3.40 kg	Value7.50 lbs
AttributeNominal WLL	Value7000 kg	Value15430 lbs
AttributeT	Value146 mm	Value5-3/4"
AttributeA	Value60 mm	Value2-3/8"
AttributeB	Value103 mm	Value4-1/16"
AttributeC	Value65 mm	Value2-9/16"
AttributeD	Value60 mm	Value2-3/8"
AttributeE	Value74 mm	Value2-29/32"
AttributeF	Value22,5 mm	Value7/8"
AttributeG	Value55 mm	Value2-5/32"
AttributeH	Value52 mm	Value2-1/16"
AttributeI	Value151 mm	Value5-15/16"
AttributeK	Value80 mm	Value3-1/8"
AttributeL	Value107 mm	Value4-7/32"
AttributeM	ValueM36 mm	ValueM36
AttributeN	Value67 mm	Value2-5/8"
