RUD sling and lashing systems

VWBG แหวนโหลด, เกลียวเมตริก

ใช้งานได้หลากหลายรูปแบบไม่ว่าจะหมุนไปในทิศทางใดก็ตาม

- แกนหมุนได้ 360°, ห่วงหูยกหมุนได้ 230°
- มีเครื่องหมายวัดแสดงบนจุดยกเพื่อความง่ายต่อการตรวจสอบทางสายตา
- ตลับลูกปืนสำหรับการหมุนที่ราบลื่น คล่องตัว ไม่มีติดขัด
- สามารถหมุนได้อย่างราบรื่นแม้ในขณะยกชิ้นงาน
- เมื่อยกรับน้ำหนัก ห่วงหูยกจะหมุนไปในทิศทางที่เหมาะสมและรับน้ำหนักได้ดีที่สุดโดยอัตโนมัติ

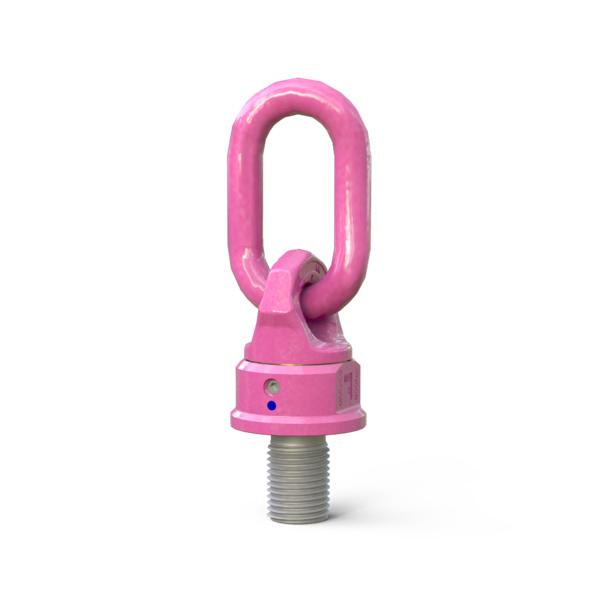

Lifting Point threaded VWBG 6t(7,5t)-M33 (8600150)

Article number: 8600150

Attribute	Value	Value
Attributeweight	Value4.69 kg	Value10.34 lbs
AttributeNominal WLL	Value6000 kg	Value13200 lbs
AttributeT	Value208 mm	Value8-3/16"
AttributeA	Value23 mm	Value29/32"
AttributeB	Value86 mm	Value3-3/8"
AttributeC	Value50 mm	Value1-31/32"
AttributeD	Value90 mm	Value3-17/32"
AttributeE	Value80 mm	Value3-1/8"
AttributeF	Value50 mm	Value1-31/32"
AttributeG	Value94 mm	Value3-11/16"
AttributeM	ValueM33 mm	ValueM33

Lifting Point threaded VWBG 8t(10t)-M36 (7999059)

Article number: 7999059

Attribute	Value	Value
Attributeweight	Value4.72 kg	Value10.41 lbs
AttributeNominal WLL	Value8000 kg	Value17600 lbs
AttributeT	Value208 mm	Value8-3/16"
AttributeA	Value22 mm	Value7/8"
AttributeB	Value86 mm	Value3-3/8"
AttributeC	Value50 mm	Value1-31/32"
AttributeD	Value90 mm	Value3-17/32"
AttributeE	Value80 mm	Value3-1/8"
AttributeF	Value54 mm	Value2-1/8"
AttributeG	Value94 mm	Value3-11/16"
AttributeM	ValueM36 mm	ValueM36

Lifting Point threaded VWBG 12t(13t)-M42 (7999044)

Article number: 7999044

Attribute	Value	Value
Attributeweight	Value6.10 kg	Value13.45 lbs
AttributeNominal WLL	Value12000 kg	Value26400 lbs
AttributeT	Value234 mm	Value9-7/32"
AttributeA	Value26 mm	Value1"
AttributeB	Value111 mm	Value4-13/32"
AttributeC	Value65 mm	Value2-9/16"
AttributeD	Value98 mm	Value3-27/32"
AttributeE	Value85 mm	Value3-11/32"
AttributeF	Value63 mm	Value2-15/32"
AttributeG	Value95 mm	Value3-3/4"
AttributeM	ValueM42 mm	ValueM42

Lifting Point threaded VWBG 12t(15t)-M45 (7900455)

Article number: 7900455

Attribute	Value	Value
Attributeweight	Value6.24 kg	Value13.76 lbs
AttributeNominal WLL	Value12000 kg	Value26400 lbs
AttributeT	Value234 mm	Value9-7/32"
AttributeA	Value26 mm	Value1"
AttributeB	Value111 mm	Value4-13/32"
AttributeC	Value65 mm	Value2-9/16"
AttributeD	Value98 mm	Value3-27/32"
AttributeE	Value85 mm	Value3-11/32"
AttributeF	Value67 mm	Value2-5/8"
AttributeG	Value95 mm	Value3-3/4"
AttributeM	ValueM45 mm	ValueM45

Lifting Point threaded VWBG 13t(16t)-M48 (7999045)

Article number: 7999045

Attribute	Value	Value
Attributeweight	Value6.37 kg	Value14.04 lbs
AttributeNominal WLL	Value13000 kg	Value28600 lbs
AttributeT	Value234 mm	Value9-7/32"
AttributeA	Value26 mm	Value1"
AttributeB	Value111 mm	Value4-13/32"
AttributeC	Value65 mm	Value2-9/16"
AttributeD	Value98 mm	Value3-27/32"
AttributeE	Value85 mm	Value3-11/32"
AttributeF	Value68 mm	Value2-11/16"
AttributeG	Value95 mm	Value3-3/4"
AttributeM	ValueM48 mm	ValueM48

Lifting Point threaded VWBG 14t(20t)-M52 (7901081)

Article number: 7901081

Attribute	Value	Value
Attributeweight	Value10.55 kg	Value23.26 lbs
AttributeNominal WLL	Value14000 kg	Value30800 lbs
AttributeT	Value271 mm	Value10-21/32"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value119 mm	Value4-11/16"
AttributeC	Value70 mm	Value2-3/4"
AttributeD	Value120 mm	Value4-3/4"
AttributeE	Value95 mm	Value3-3/4"
AttributeF	Value78 mm	Value3-1/16"
AttributeG	Value120 mm	Value4-3/4"
AttributeM	ValueM52 mm	ValueM52

Lifting Point threaded VWBG 16t(22t)-M56 (7999004)

Article number: 7999004

Attribute	Value	Value
Attributeweight	Value10.68 kg	Value23.55 lbs
AttributeNominal WLL	Value16000 kg	Value35200 lbs
AttributeT	Value271 mm	Value10-21/32"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value119 mm	Value4-11/16"
AttributeC	Value70 mm	Value2-3/4"
AttributeD	Value120 mm	Value4-3/4"
AttributeE	Value95 mm	Value3-3/4"
AttributeF	Value84 mm	Value3-5/16"
AttributeG	Value120 mm	Value4-3/4"
AttributeM	ValueM56 mm	ValueM56

Lifting Point threaded VWBG 16t(22t)-M60 (8600454)

Article number: 8600454

Attribute	Value	Value
Attributeweight	Value11.37 kg	Value25.07 lbs
AttributeNominal WLL	Value16000 kg	Value35200 lbs
AttributeT	Value271 mm	Value10-21/32"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value119 mm	Value4-11/16"
AttributeC	Value70 mm	Value2-3/4"
AttributeD	Value120 mm	Value4-3/4"
AttributeE	Value95 mm	Value3-3/4"
AttributeF	Value90 mm	Value3-17/32"
AttributeG	Value120 mm	Value4-3/4"
AttributeM	ValueM60 mm	ValueM60

Lifting Point threaded VWBG 16t(25t)-M64 (7999043)

Article number: 7999043

Attribute	Value	Value
Attributeweight	Value11.40 kg	Value25.13 lbs
AttributeNominal WLL	Value16000 kg	Value35200 lbs
AttributeT	Value271 mm	Value10-21/32"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value119 mm	Value4-11/16"
AttributeC	Value70 mm	Value2-3/4"
AttributeD	Value120 mm	Value4-3/4"
AttributeE	Value95 mm	Value3-3/4"
AttributeF	Value94 mm	Value3-11/16"
AttributeG	Value120 mm	Value4-3/4"
AttributeM	ValueM64 mm	ValueM64

Lifting Point threaded VWBG 31,5t(40t)-M72 (7900097)

Article number: 7900097

Attribute	Value	Value
Attributeweight	Value29.96 kg	Value66.05 lbs
AttributeNominal WLL	Value31500 kg	Value69300 lbs
AttributeT	Value338 mm	Value13-5/16"
AttributeA	Value46 mm	Value1-13/16"
AttributeB	Value130 mm	Value5-1/8"
AttributeC	Value90 mm	Value3-17/32"
AttributeD	Value170 mm	Value6-11/16"
AttributeE	Value145 mm	Value5-11/16"
AttributeF	Value108 mm	Value4-1/4"
AttributeG	Value159 mm	Value6-1/4"
AttributeM	ValueM72 mm	ValueM72

Lifting Point threaded VWBG 35t(48t)-M80 (7900100)

Article number: 7900100

Attribute	Value	Value
Attributeweight	Value31.19 kg	Value68.76 lbs
AttributeNominal WLL	Value35000 kg	Value77000 lbs
AttributeT	Value338 mm	Value13-5/16"
AttributeA	Value46 mm	Value1-13/16"
AttributeB	Value130 mm	Value5-1/8"
AttributeC	Value90 mm	Value3-17/32"
AttributeD	Value170 mm	Value6-11/16"
AttributeE	Value145 mm	Value5-11/16"
AttributeF	Value120 mm	Value4-3/4"
AttributeG	Value159 mm	Value6-1/4"
AttributeM	ValueM80 mm	ValueM80

Lifting Point threaded VWBG 40t(50t)-M90 (7903408)

Article number: 7903408

Attribute	Value	Value
Attributeweight	Value34.39 kg	Value75.82 lbs
AttributeNominal WLL	Value40000 kg	Value88000 lbs
AttributeT	Value378 mm	Value14-7/8"
AttributeA	Value46 mm	Value1-13/16"
AttributeB	Value168 mm	Value6-5/8"
AttributeC	Value110 mm	Value4-11/32"
AttributeD	Value170 mm	Value6-11/16"
AttributeE	Value145 mm	Value5-11/16"
AttributeF	Value135 mm	Value5-5/16"
AttributeG	Value159 mm	Value6-1/4"
AttributeM	ValueM90 mm	ValueM90

Lifting Point threaded VWBG 40t(50t)-M100 (8600458)

Article number: 8600458

Attribute	Value	Value
Attributeweight	Value36.50 kg	Value80.47 lbs
AttributeNominal WLL	Value40000 kg	Value88000 lbs
AttributeT	Value378 mm	Value14-7/8"
AttributeA	Value46 mm	Value1-13/16"
AttributeB	Value168 mm	Value6-5/8"
AttributeC	Value110 mm	Value4-11/32"
AttributeD	Value170 mm	Value6-11/16"
AttributeE	Value145 mm	Value5-11/16"
AttributeF	Value150 mm	Value5-7/8"
AttributeG	Value159 mm	Value6-1/4"
AttributeM	ValueM100 mm	ValueM100
