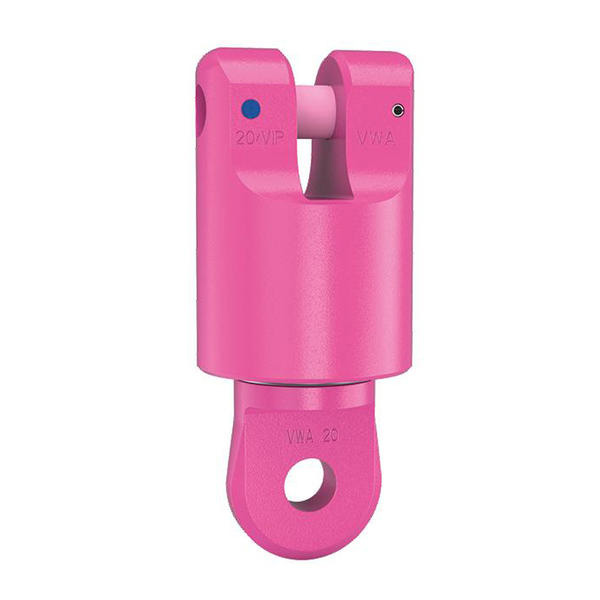

VIP Swivel connector
With a ball bearing which enables swiveling under load. Can be versatilily combined with all VIP components by means of the clevis connection using the adapter link. Insensitive to dirt owing to the sealed body. Connecting bolt and tensioning sleeve are pre-assembled. The BGR 500/DGUV-Regel 100-500 stipulates that lifting means never be used while in a twisted condition. This requirement is automatically met by the VWA because of the integrated ball bearing.
Hint: Install the VWA in such a way that the bending of the adapter link is not possible while in use. Not suitable for permanent use and swiveling under full load. Avoid bending of the appliance.
Article number: 7990723
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value7.28 kg | Value16.05 lbs |
| AttributeNominal WLL | Value16000 kg | Value35300 lbs |
| AttributeT | Value147 mm | Value5-25/32" |
| AttributeA | Value100 mm | Value3-15/16" |
| AttributeB | Value21 mm | Value13/16" |
| AttributeC | Value37 mm | Value1-7/16" |
| AttributeD | Value25 mm | Value63/64" |
Article number: 7100634
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value7.77 kg | Value15.0 lbs |
| AttributeNominal WLL | Value20000 kg | Value44000 lbs |
| AttributeT | Value147 mm | Value5-13/16" |
| AttributeA | Value102 mm | Value4" |
| AttributeB | Value23 mm | Value7/8" |
| AttributeC | Value37 mm | Value1-15/32" |
| AttributeD | Value28 mm | Value1-1/8" |
