RUD sling and lashing systems

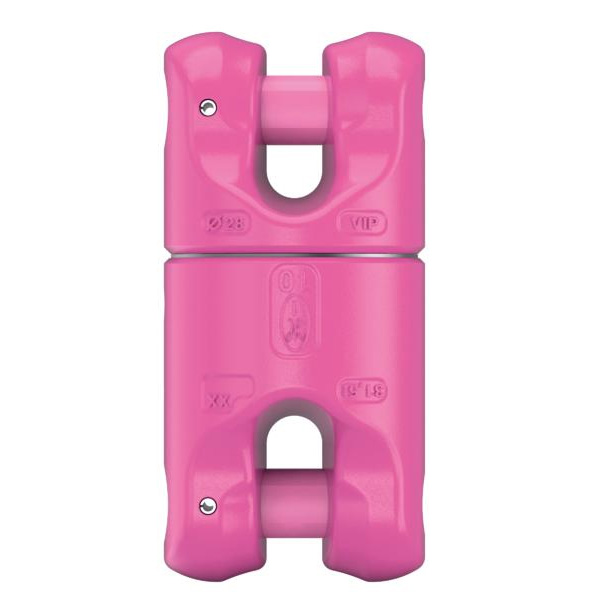

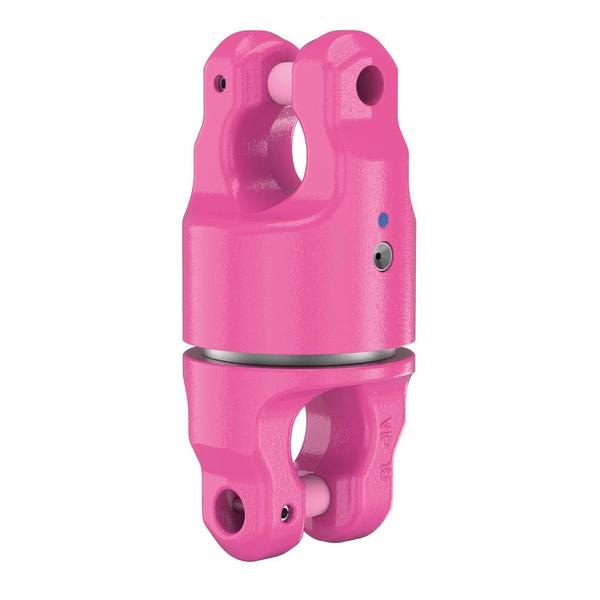

VIP Universal-swivel
- With a ball bearing which enables swiveling under load.
- Patented clevis system facilitating a universal connection
- Can be loaded in all directions with the shortest combination possibilities.
Assemble only with approved RUD - VIP - chain and ring components:
- VIP-Cobra eye hook VCÖH
- Oval-Link PP-B for PowerPoint
Attention: The VIP-Chain connection is fool-proof. When assembling, especially with the ring components , pay attention to the correct WLL! Not suitable for permanent use and swiveling under full load. Connecting bolt and tensioning sleeve are pre-assembled. The BGR 500/DGUV-Regel 100-500 stipulates that slings never be used while in a twisted condition. This requirement is automatically met by the UW-PP because of the integrated ball bearing.
Article number: 7990878
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.20 kg | Value0.44 lbs |
| AttributeNominal WLL | Value630 kg | Value1385 lbs |
| AttributeT | Value56 mm | Value2-3/16" |
| AttributeA | Value32 mm | Value1-1/4" |
| AttributeB | Value4,8 mm | Value3/16" |
| AttributeC | Value13 mm | Value1/2" |
Article number: 7990879
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.42 kg | Value0.93 lbs |
| AttributeNominal WLL | Value1500 kg | Value3300 lbs |
| AttributeT | Value68 mm | Value2-11/16" |
| AttributeA | Value38 mm | Value1-1/2" |
| AttributeB | Value7 mm | Value9/32" |
| AttributeC | Value16 mm | Value5/8" |
Article number: 7990880
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value1.00 kg | Value2.20 lbs |
| AttributeNominal WLL | Value2500 kg | Value5500 lbs |
| AttributeT | Value88 mm | Value3-15/32" |
| AttributeA | Value52 mm | Value2-1/16" |
| AttributeB | Value9,1 mm | Value23/64" |
| AttributeC | Value20 mm | Value3/4" |
Article number: 7990881
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value1.91 kg | Value4.21 lbs |
| AttributeNominal WLL | Value4000 kg | Value8800 lbs |
| AttributeT | Value106 mm | Value4-3/16" |
| AttributeA | Value66 mm | Value2-5/8" |
| AttributeB | Value11 mm | Value7/16" |
| AttributeC | Value26 mm | Value1" |
Article number: 7990882
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value3.64 kg | Value8.02 lbs |
| AttributeNominal WLL | Value6700 kg | Value15000 lbs |
| AttributeT | Value131 mm | Value5-3/16" |
| AttributeA | Value80 mm | Value3-1/8" |
| AttributeB | Value14,5 mm | Value9/16" |
| AttributeC | Value30 mm | Value1-3/16" |
Article number: 7992861
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value4.87 kg | Value10.74 lbs |
| AttributeNominal WLL | Value10000 kg | Value22000 lbs |
| AttributeT | Value141 mm | Value5-9/16" |
| AttributeA | Value86 mm | Value3-3/8" |
| AttributeB | Value17,6 mm | Value11/16" |
| AttributeC | Value37 mm | Value1-7/16" |
Article number: 7903435
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value27.30 kg | Value60.19 lbs |
| AttributeNominal WLL | Value31500 kg | Value69300 lbs |
| AttributeT | Value183 mm | Value7-3/16" |
| AttributeA | Value148 mm | Value5-13/16" |
