VIP Isolating sling

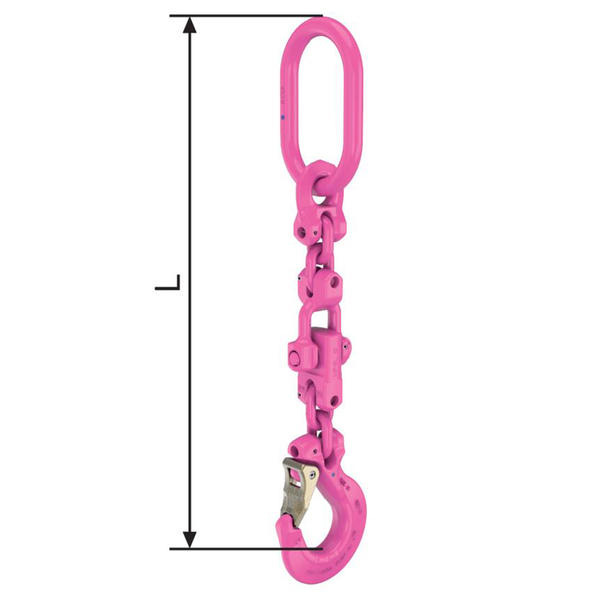

VIP standard-isolating sling to be used when welding is carried out on suspended loads. Minimises the danger of current flowing through the assembly to the crane. With an intergrated VIP - fork head - Isolating plate which isolates up to a maximum of 1000 V. Max. operating temperature +80°C.
V-SIG consits of:
- 1x VIP A-link
- 1x 2 chain links
- 1x VIP fork head shackle
- 1x VIP fork head isolating plate
- 1x 2 chain links
- 1x VIP cobra hook
Article number: 7984258
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value1.40 kg | Value3.1 lbs |
| AttributeNominal WLL | Value1500 kg | Value3300 lbs |
| AttributeT | Value350 mm | Value13-3/4" |
| AttributeA | Value13 mm | Value1/2" |
| AttributeB | Value60 mm | Value2-3/8" |
| AttributeC | Value110 mm | Value4-11/32" |
Article number: 7984259
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value2.40 kg | Value5.3 lbs |
| AttributeNominal WLL | Value2500 kg | Value5500 lbs |
| AttributeT | Value425 mm | Value16-3/4" |
| AttributeA | Value16 mm | Value5/8" |
| AttributeB | Value60 mm | Value2-3/8" |
| AttributeC | Value110 mm | Value4-11/32" |
Article number: 7984260
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value4.02 kg | Value9.5 lbs |
| AttributeNominal WLL | Value4000 kg | Value8800 lbs |
| AttributeT | Value515 mm | Value20-3/8" |
| AttributeA | Value18 mm | Value23/32" |
| AttributeB | Value75 mm | Value2-15/16" |
| AttributeC | Value135 mm | Value5-5/16" |
Article number: 7984261
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value8.20 kg | Value18.0 lbs |
| AttributeNominal WLL | Value6700 kg | Value15000 lbs |
| AttributeT | Value632 mm | Value24-7/8" |
| AttributeA | Value22 mm | Value7/8" |
| AttributeB | Value90 mm | Value3-17/32" |
| AttributeC | Value160 mm | Value6-5/16" |
Article number: 7984262
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value13.10 kg | Value28.8 lbs |
| AttributeNominal WLL | Value10000 kg | Value22000 lbs |
| AttributeT | Value760 mm | Value29-15/16" |
| AttributeA | Value26 mm | Value1" |
| AttributeB | Value100 mm | Value3-15/16" |
| AttributeC | Value180 mm | Value7-3/32" |
