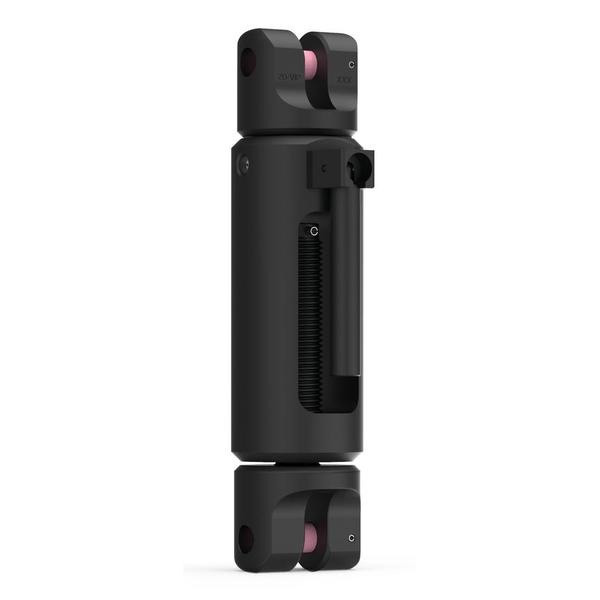

VIP Spindle tensioner
Length adjustment for VIP-chain. For an exact length adjustment on a chain sling. Deu to running on the ratchet, adjustment to the mm can be performed. Under load, it is only possible to elongate the chain strand. Shortening with claw VV. Clevis connection on both sides. Retaining and load pins are preassembled.Article number: 7997322
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value18.1 kg | Value39.7 lbs |
| AttributeNominal WLL | Value16000 kg | Value35300 lbs |
| AttributeT | Value363.0 mm | Value11-5/8" |
| AttributeA | Value503.0 mm | Value14-3/8" |
| AttributeB | Value140.0 mm | Value2-3/4" |
| AttributeC | Value110 mm | Value4-11/32" |
Article number: 7994668
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value18.3 kg | Value40.2 lbs |
| AttributeNominal WLL | Value20000 kg | Value44000 lbs |
| AttributeT | Value363.0 mm | Value11-5/8" |
| AttributeA | Value503.0 mm | Value14-3/8" |
| AttributeB | Value140.0 mm | Value2-3/4" |
| AttributeC | Value110 mm | Value4-11/32" |
Article number: 7900772
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value44.00 kg | Value97.00 lbs |
| AttributeNominal WLL | Value31500 kg | Value69300 lbs |
| AttributeT | Value478 mm | Value18-13/16" |
| AttributeA | Value650 mm | Value25-5/8" |
| AttributeB | Value175 mm | Value6-7/8" |
| AttributeC | Value138 mm | Value5-7/16" |
| AttributeD | Value120 mm | Value4-3/4" |
