RUD sling and lashing systems

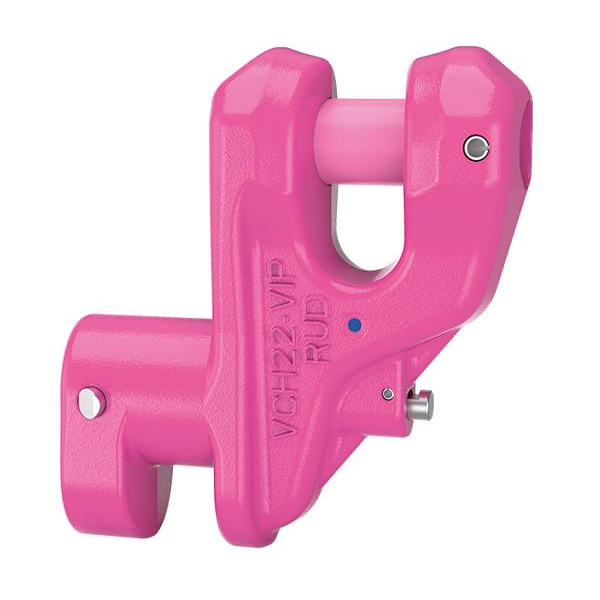

VIP Container hook
- To suit ISO container corners.
- The container hook is equipped with a patented safety lock.
- It is no longer possible to fall out of the ISO corner when lifting. Simplest handling.
- Insertion: By automatic opening and closing without actuating the safety lock.
- Removal: Only possible with the release bolt actuated.
- VCH-SL-22 to suit ISO container corner. Clevis connection for size 22 VIP-Chain.
- With a VRG-16 reduction, the VIP-Chain 16 can be used.
Article number: 8502313
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value4.22 kg | Value9.30 lbs |
| AttributeNominal WLL | Value20000 kg | Value44000 lbs |
| AttributeT | Value45 mm | Value1-25/32" |
| AttributeA | Value24 mm | Value15/16" |
| AttributeB | Value62 mm | Value2-7/16" |
| AttributeC | Value48 mm | Value1-7/8" |
| AttributeD | Value50 mm | Value1-31/32" |
| AttributeE | Value100 mm | Value3-15/16" |
| AttributeF | Value50 mm | Value1-31/32" |
Article number: 8505210
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value2.35 kg | Value5.18 lbs |
| AttributeNominal WLL | Value10000 kg | Value22000 lbs |
| AttributeT | Value40 mm | Value1-9/16" |
| AttributeA | Value18 mm | Value23/32" |
| AttributeB | Value70 mm | Value2-3/4" |
| AttributeC | Value23 mm | Value29/32" |
| AttributeD | Value50 mm | Value1-31/32" |
| AttributeE | Value46 mm | Value1-13/16" |
| AttributeF | Value76 mm | Value3" |
| AttributeG | Value48 mm | Value1-7/8" |
Article number: 7908182
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value3.15 kg | Value6.94 lbs |
| AttributeNominal WLL | Value12500 kg | Value27500 lbs |
| AttributeT | Value83 mm | Value3-1/4" |
| AttributeA | Value56 mm | Value2-3/16" |
| AttributeB | Value70 mm | Value2-3/4" |
| AttributeC | Value28 mm | Value1-1/8" |
| AttributeD | Value50 mm | Value1-31/32" |
| AttributeE | Value24 mm | Value15/16" |
| AttributeF | Value50 mm | Value1-31/32" |
| AttributeG | Value53 mm | Value2-3/32" |
