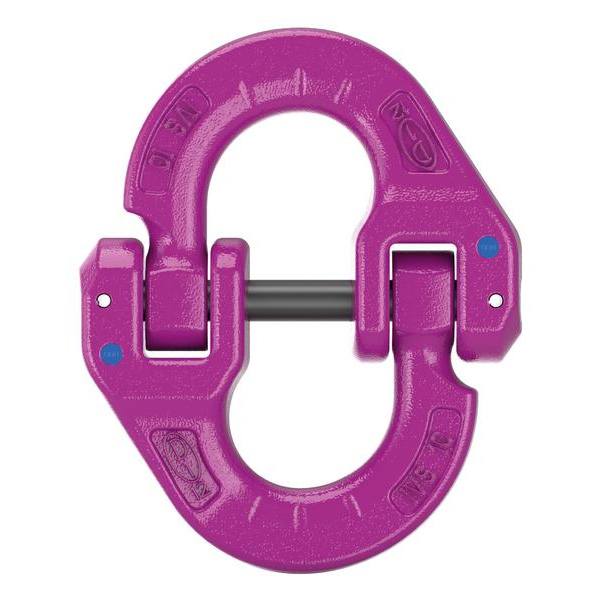

ICE Connecting link

The all-purpose ICE - coupling link. The connecting pin is held by a reliable safety tensioning sleeve. It does not move around and hence less vulnerable to being damaged. On to the link brackets, various extrinsic connections eg: lifting points, grabs and chains can be mounted.

Article number: 7901471

ICE-Chain coupling IVS 6
AttributeValueValue
AttributeweightValue0.13 kgValue0.29 lbs
AttributeNominal WLLValue1800 kgValue3960 lbs
AttributeTValue45 mmValue1-25/32"
AttributeAValue18 mmValue11/16"
AttributeBValue56 mmValue2-3/16"
AttributeCValue13 mmValue1/2"
AttributeDValue11 mmValue7/16"
AttributeEValue17 mmValue43/64"

Article number: 7901472

ICE-Chain coupling IVS 8
AttributeValueValue
AttributeweightValue0.29 kgValue0.64 lbs
AttributeNominal WLLValue3000 kgValue6600 lbs
AttributeTValue61 mmValue2-13/32"
AttributeAValue24 mmValue15/16"
AttributeBValue70 mmValue2-3/4"
AttributeCValue17,5 mmValue
AttributeDValue14 mmValue9/16"
AttributeEValue23 mmValue29/32"

Article number: 7901473

ICE-Chain coupling IVS 10
AttributeValueValue
AttributeweightValue0.61 kgValue1.34 lbs
AttributeNominal WLLValue5000 kgValue11000 lbs
AttributeTValue74 mmValue2-29/32"
AttributeAValue28 mmValue1-1/8"
AttributeBValue88 mmValue3-15/32"
AttributeCValue22 mmValue7/8"
AttributeDValue17 mmValue43/64"
AttributeEValue27 mmValue1-1/16"

Article number: 7901474

ICE-Chain coupling IVS 13
AttributeValueValue
AttributeweightValue1.20 kgValue2.65 lbs
AttributeNominal WLLValue8000 kgValue17600 lbs
AttributeTValue93 mmValue3-21/32"
AttributeAValue34 mmValue1-11/32"
AttributeBValue111 mmValue4-13/32"
AttributeCValue28 mmValue1-1/8"
AttributeDValue23 mmValue29/32"
AttributeEValue33 mmValue1-5/16"

Article number: 7901475

ICE-Chain coupling IVS 16
AttributeValueValue
AttributeweightValue1.98 kgValue4.37 lbs
AttributeNominal WLLValue12500 kgValue27500 lbs
AttributeTValue108 mmValue4-1/4"
AttributeAValue39 mmValue1-9/16"
AttributeBValue130 mmValue5-1/8"
AttributeCValue33 mmValue1-5/16"
AttributeDValue27 mmValue1-1/16"
AttributeEValue37 mmValue1-7/16"
