RUD sling and lashing systems

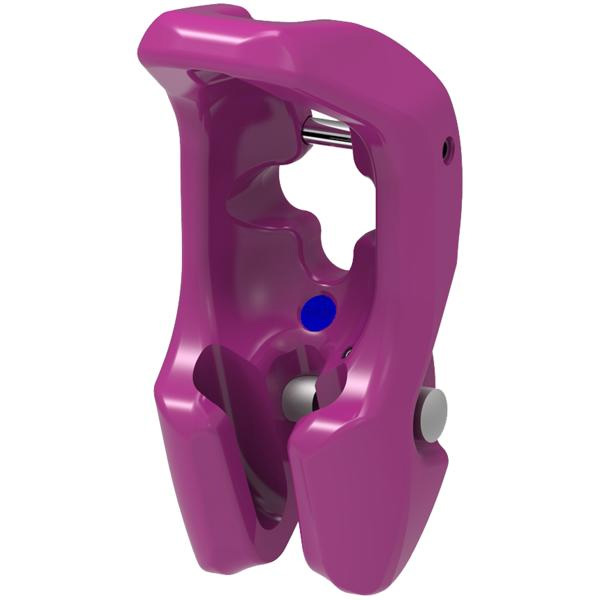

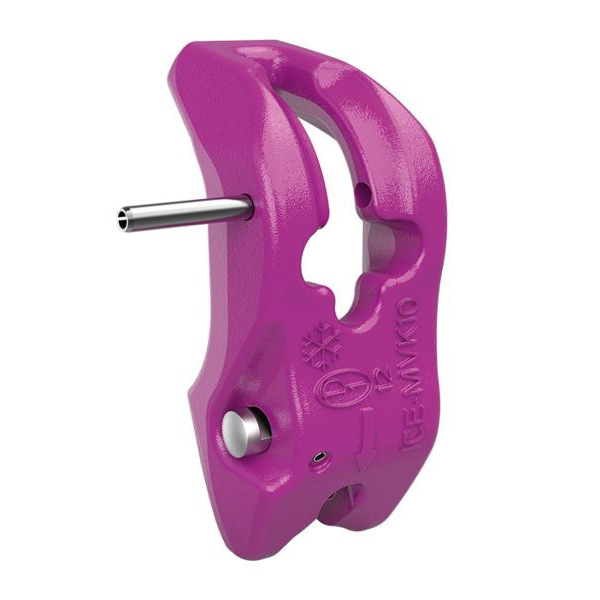

ICE Shortening claw IMVK
- Further development of the VMVK with adaptation to the ICE-Requirements.
- Captive installed in the continuous chain strand.
- Can be mounted at any position on the chain strand, or moved on the chain.
- No additional chain and coupling part required.
- Ideal support of the chain by the link-shaped bag support – meaning no reduction of WLL.
- The robust, spring-mounted safety bolt prevents the suspended chains from loosening automatically when unloaded or when load is attached.
- Complies with DIN 5692.
Article number: 7900985
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.28 kg | Value0.62 lbs |
| AttributeNominal WLL | Value1800 kg | Value3960 lbs |
| AttributeT | Value66 mm | Value2-5/8" |
| AttributeA | Value38 mm | Value1-1/2" |
| AttributeB | Value32 mm | Value1-1/4" |
| AttributeC | Value41 mm | Value1-5/8" |
| AttributeD | Value37 mm | Value1-7/16" |
Article number: 7900981
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.61 kg | Value1.34 lbs |
| AttributeNominal WLL | Value3000 kg | Value6600 lbs |
| AttributeT | Value88 mm | Value3-15/32" |
| AttributeA | Value47 mm | Value1-7/8" |
| AttributeB | Value40 mm | Value1-9/16" |
| AttributeC | Value54 mm | Value2-1/8" |
| AttributeD | Value47 mm | Value1-7/8" |
Article number: 7900983
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value1.61 kg | Value3.55 lbs |
| AttributeNominal WLL | Value5000 kg | Value11000 lbs |
| AttributeT | Value110 mm | Value4-11/32" |
| AttributeA | Value60 mm | Value2-3/8" |
| AttributeB | Value51 mm | Value2" |
| AttributeC | Value67 mm | Value2-5/8" |
| AttributeD | Value60 mm | Value2-3/8" |
Article number: 7900984
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value2.60 kg | Value5.73 lbs |
| AttributeNominal WLL | Value8000 kg | Value17600 lbs |
| AttributeT | Value143 mm | Value5-5/8" |
| AttributeA | Value77 mm | Value3"-1/32" |
| AttributeB | Value65 mm | Value2-9/16" |
| AttributeC | Value87 mm | Value3-7/16" |
| AttributeD | Value77 mm | Value3"-1/32" |
Article number: 7900984
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value2.60 kg | Value5.73 lbs |
| AttributeNominal WLL | Value8000 kg | Value17600 lbs |
| AttributeT | Value143 mm | Value5-5/8" |
| AttributeA | Value77 mm | Value3"-1/32" |
| AttributeB | Value65 mm | Value2-9/16" |
| AttributeC | Value87 mm | Value3-7/16" |
| AttributeD | Value77 mm | Value3"-1/32" |
Article number: 7900986
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value4.85 kg | Value10.69 lbs |
| AttributeNominal WLL | Value12500 kg | Value27500 lbs |
| AttributeT | Value176 mm | Value6-15/16" |
| AttributeA | Value95 mm | Value3-3/4" |
| AttributeB | Value81 mm | Value3-3/16" |
| AttributeC | Value110 mm | Value4-11/32" |
| AttributeD | Value95 mm | Value3-3/4" |
