RUD sling and lashing systems
ICE-Master links

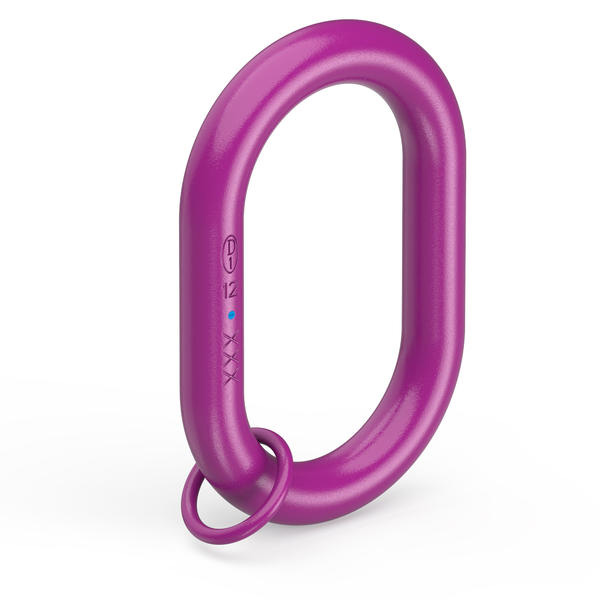

ICE Master Link without identification tag. ICE Master link is marked by the RUD-ID-TAG® (RFID chip) and with the clear identification number distinguished. Manufactured according to DIN EN 1677-4. When preparing the coupling arrangement, always checkt that the right combination is used - number of legs, WLL and chain diameter!Article number: 7905003
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.37 kg | Value0.82 lbs |
| AttributeNominal WLL | Value1800 kg | Value3960 lbs |
| AttributeT | Value110 mm | Value4-11/32" |
| AttributeA | Value13 mm | Value1/2" |
| AttributeB | Value60 mm | Value2-3/8" |
Article number: 7905004
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.69 kg | Value1.52 lbs |
| AttributeNominal WLL | Value3000 kg | Value6600 lbs |
| AttributeT | Value135 mm | Value5-5/16" |
| AttributeA | Value16 mm | Value5/8" |
| AttributeB | Value75 mm | Value2-15/16" |
Article number: 7904687
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.99 kg | Value2.18 lbs |
| AttributeNominal WLL | Value3750 kg | Value8250 lbs |
| AttributeT | Value160 mm | Value6-13/32" |
| AttributeA | Value18 mm | Value23/32" |
| AttributeB | Value90 mm | Value3-17/32" |
Article number: 7905005
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value1.55 kg | Value3.42 lbs |
| AttributeNominal WLL | Value5000 kg | Value11000 lbs |
| AttributeT | Value160 mm | Value6-13/32" |
| AttributeA | Value22 mm | Value7/8" |
| AttributeB | Value90 mm | Value3-17/32" |
Article number: 7904688
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value2.36 kg | Value5.20 lbs |
| AttributeNominal WLL | Value8000 kg | Value17600 lbs |
| AttributeT | Value180 mm | Value7-1/16" |
| AttributeA | Value26 mm | Value1" |
| AttributeB | Value100 mm | Value3-15/16" |
Article number: 7904689
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value4.02 kg | Value8.86 lbs |
| AttributeNominal WLL | Value12500 kg | Value27500 lbs |
| AttributeT | Value200 mm | Value7-7/8" |
| AttributeA | Value32 mm | Value1-1/4" |
| AttributeB | Value110 mm | Value4-11/32" |
Article number: 7905006
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value4.93 kg | Value10.87 lbs |
| AttributeNominal WLL | Value12500 kg | Value27500 lbs |
| AttributeT | Value260 mm | Value10-1/4" |
| AttributeA | Value32 mm | Value1-1/4" |
| AttributeB | Value140 mm | Value5-1/2" |
Article number: 7904690
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value6.43 kg | Value14.18 lbs |
| AttributeNominal WLL | Value17000 kg | Value37400 lbs |
| AttributeT | Value260 mm | Value10-1/4" |
| AttributeA | Value36 mm | Value1-27/64" |
| AttributeB | Value140 mm | Value5-1/2" |
Article number: 7909523
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value10.51 kg | Value23.17 lbs |
| AttributeNominal WLL | Value17000 kg | Value37400 lbs |
| AttributeT | Value340 mm | Value13-3/8" |
| AttributeA | Value40 mm | Value1-9/16" |
| AttributeB | Value180 mm | Value7-1/16" |
Article number: 7904692
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value13.94 kg | Value30.73 lbs |
| AttributeNominal WLL | Value26500 kg | Value58300 lbs |
| AttributeT | Value350 mm | Value13-3/4" |
| AttributeA | Value46 mm | Value1-13/16" |
| AttributeB | Value190 mm | Value7-1/2" |
