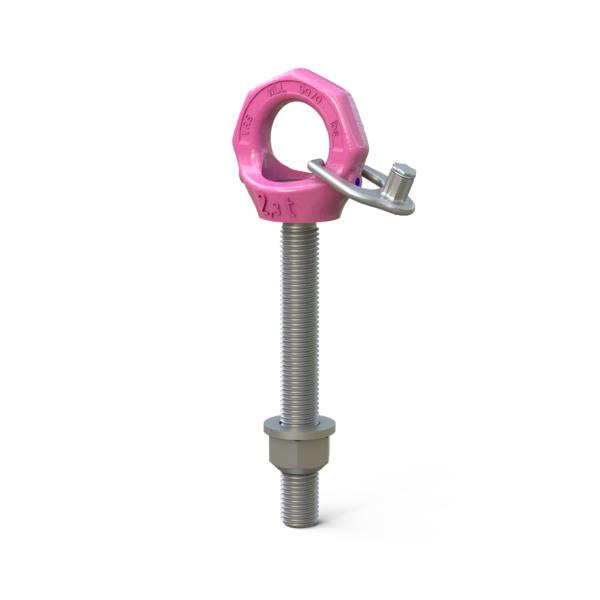

VRS-F STARPOINT, metric thread with variable length, comes with locknut and washer
Metric thread with variable length.- Large WLL range 0.4 t – 4.5 t.
- Non-detachable ICE-Bolt made of patent steel (M6–M24), thus reducing the risk of using unsuitable standard bolts. Special bolt for safe deep temperature usage with higher toughness and thus higher bending strength as well as less wear.
- The WLL information corresponds with the min. WLL (worst case scenario) in all loading directions. Higher WLL by optimised attachment or application.
- Variable bolt lengths available for use in threaded and through holes.
- Comprehensive range of threads.
Article number: 8600269

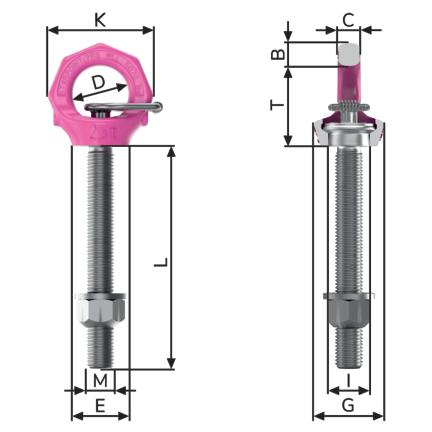

| Attribute | Value |
|---|---|
| AttributeWLL | Value300 kg |
| AttributeWeight | Value |
| Attributesize B | Value11 mm |
| Attributesize C | Value9 mm |
| Attributesize D | Value25 mm |
| Attributesize E | Value25 mm |
| Attributesize G | Value30 mm |
| Attributesize I | Value16,3 mm |
| Attributesize K | Value47 mm |
| Attributesize L vario | Value12-70 |
| Attributesize M | ValueM8 |
| Attributesize N | Value6 mm |
| Attributepitch T | Value35 mm |
Article number: 8600270
| Attribute | Value | Value |
|---|---|---|
| AttributeNominal WLL | Value400 kg | Value880 lbs |
| AttributeT | Value35 mm | Value1-3/8" |
| AttributeB | Value11 mm | Value7/16" |
| AttributeC | Value9 mm | Value11/32" |
| AttributeD | Value25 mm | Value63/64" |
| AttributeE | Value25 mm | Value63/64" |
| AttributeG | Value30 mm | Value1-3/16" |
| AttributeI | Value16,3 mm | Value41/64" |
| AttributeK | Value47 mm | Value1-7/8" |
| AttributeL | Value16-70 mm | Value16-70 |
| AttributeM | ValueM10 mm | ValueM10 |
| AttributeN | Value6 mm | Value15/64" |
Article number: 8600271
| Attribute | Value | Value |
|---|---|---|
| AttributeNominal WLL | Value750 kg | Value1650 lbs |
| AttributeT | Value42 mm | Value1-21/32" |
| AttributeB | Value13 mm | Value1/2" |
| AttributeC | Value10 mm | Value3/8" |
| AttributeD | Value30 mm | Value1-3/16" |
| AttributeE | Value30 mm | Value1-3/16" |
| AttributeG | Value34 mm | Value1-11/32" |
| AttributeI | Value19,8 mm | Value25/32" |
| AttributeK | Value56 mm | Value2-3/16" |
| AttributeL | Value18-150 mm | Value18-150 |
| AttributeM | ValueM12 mm | ValueM12 |
| AttributeN | Value8 mm | Value5/16" |
Article number: 8600272
| Attribute | Value | Value |
|---|---|---|
| AttributeNominal WLL | Value1500 kg | Value3300 lbs |
| AttributeT | Value49 mm | Value1-15/16" |
| AttributeB | Value15 mm | Value19/32" |
| AttributeC | Value13 mm | Value1/2" |
| AttributeD | Value35 mm | Value1-3/8" |
| AttributeE | Value36 mm | Value1-27/64" |
| AttributeG | Value40 mm | Value1-9/16" |
| AttributeI | Value23,5 mm | Value59/64" |
| AttributeK | Value65 mm | Value2-9/16" |
| AttributeL | Value24-120 mm | Value24-120 |
| AttributeM | ValueM16 mm | ValueM16 |
| AttributeN | Value10 mm | Value3/8" |
Article number: 8600273
| Attribute | Value | Value |
|---|---|---|
| AttributeNominal WLL | Value2300 kg | Value5070 lbs |
| AttributeT | Value58 mm | Value2-9/32" |
| AttributeB | Value17 mm | Value43/64" |
| AttributeC | Value16 mm | Value5/8" |
| AttributeD | Value40 mm | Value1-9/16" |
| AttributeE | Value41 mm | Value1-5/8" |
| AttributeG | Value50 mm | Value1-31/32" |
| AttributeI | Value29,3 mm | Value1-5/32" |
| AttributeK | Value76 mm | Value3" |
| AttributeL | Value30-160 mm | Value30-160 |
| AttributeM | ValueM20 mm | ValueM20 |
| AttributeN | Value12 mm | Value15/32" |
Article number: 8600274
| Attribute | Value | Value |
|---|---|---|
| AttributeNominal WLL | Value3200 kg | Value7050 lbs |
| AttributeT | Value70 mm | Value2-3/4" |
| AttributeB | Value20 mm | Value3/4" |
| AttributeC | Value19 mm | Value3/4" |
| AttributeD | Value49 mm | Value1-15/16" |
| AttributeE | Value51 mm | Value2" |
| AttributeG | Value60 mm | Value2-3/8" |
| AttributeI | Value35 mm | Value1-3/8" |
| AttributeK | Value92 mm | Value3-5/8" |
| AttributeL | Value36-140 mm | Value36-140 |
| AttributeM | ValueM24 mm | ValueM24 |
| AttributeN | Value14 mm | Value9/16" |
Article number: 8600275
| Attribute | Value | Value |
|---|---|---|
| AttributeNominal WLL | Value4500 kg | Value9920 lbs |
| AttributeT | Value87 mm | Value3-7/16" |
| AttributeB | Value26 mm | Value1" |
| AttributeC | Value24 mm | Value15/16" |
| AttributeD | Value60 mm | Value2-3/8" |
| AttributeE | Value66 mm | Value2-5/8" |
| AttributeG | Value75 mm | Value2-15/16" |
| AttributeI | Value44 mm | Value1-3/4" |
| AttributeK | Value114 mm | Value4-1/2" |
| AttributeL | Value45-190 mm | Value45-190 |
| AttributeM | ValueM30 mm | ValueM30 |
| AttributeN | Value17 mm | Value43/64" |
