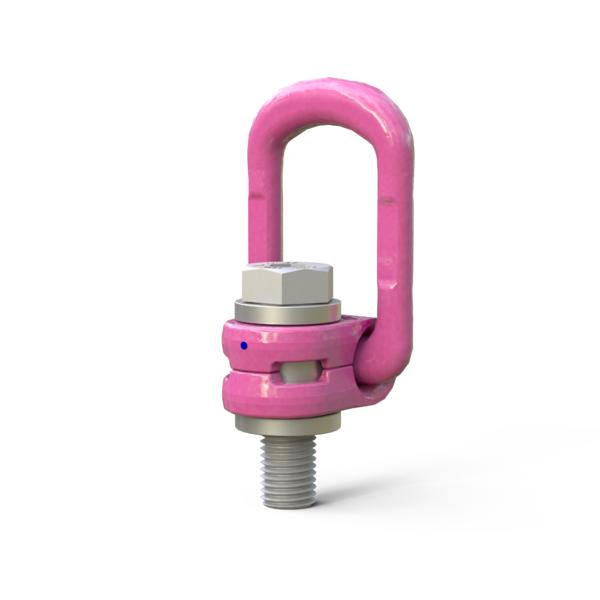

VLBG-Z Load ring, UNC/UN thread

Tried and tested – full WLL in all directions

Captive but exchangable RUD-Bolt
Bracket adjustable in force direction
Comprehensive range of threads

Load ring VLBG-Z 0,63t 3/8"-16UNC with RUD-bolt (8504256)

Article number: 8504256

Attribute	Value	Value
Attributeweight	Value0.29 kg	Value0.64 lbs
AttributeNominal WLL	Value630 kg	Value1386 lbs
AttributeT	Value75 mm	Value2-15/16"
AttributeA	Value30 mm	Value1-3/16"
AttributeB	Value54 mm	Value2-1/8"
AttributeC	Value34 mm	Value1-11/32"
AttributeD	Value24 mm	Value15/16"
AttributeE	Value39 mm	Value1-9/16"
AttributeF	Value10 mm	Value3/8"
AttributeG	Value29 mm	Value1-5/32"
AttributeH	Value16 mm	Value5/8"
AttributeI	Value75 mm	Value2-15/16"
AttributeK	Value45 mm	Value1-25/32"
AttributeL	Value45 mm	Value1-25/32"
AttributeM	Value3/8"-16UNC mm	Value3/8"-16UNC
AttributeN	Value32 mm	Value1-1/4"

Load ring VLBG-Z 1t 1/2"-13UNC with RUD-bolt (8502349)

Article number: 8502349

Attribute	Value	Value
Attributeweight	Value0.36 kg	Value0.79 lbs
AttributeNominal WLL	Value1000 kg	Value2200 lbs
AttributeT	Value75 mm	Value2-15/16"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value54 mm	Value2-1/8"
AttributeC	Value34 mm	Value1-11/32"
AttributeD	Value26 mm	Value1"
AttributeE	Value38 mm	Value1-1/2"
AttributeF	Value10 mm	Value3/8"
AttributeG	Value29 mm	Value1-5/32"
AttributeH	Value22 mm	Value7/8"
AttributeI	Value75 mm	Value2-15/16"
AttributeK	Value45 mm	Value1-25/32"
AttributeL	Value50 mm	Value1-31/32"
AttributeM	Value1/2"-13UNC mm	Value1/2"-13UNC
AttributeN	Value32 mm	Value1-1/4"

Load ring VLBG-Z 1,5t 5/8"-11UNC with RUD-bolt (8502350)

Article number: 8502350

Attribute	Value	Value
Attributeweight	Value0.50 kg	Value1.10 lbs
AttributeNominal WLL	Value1500 kg	Value3300 lbs
AttributeT	Value85 mm	Value3-11/32"
AttributeA	Value33 mm	Value1-5/16"
AttributeB	Value56 mm	Value2-3/16"
AttributeC	Value36 mm	Value1-27/64"
AttributeD	Value30 mm	Value1-3/16"
AttributeE	Value39 mm	Value1-9/16"
AttributeF	Value13,5 mm	Value17/32"
AttributeG	Value36 mm	Value1-27/64"
AttributeH	Value24 mm	Value15/16"
AttributeI	Value86 mm	Value3-3/8"
AttributeK	Value47 mm	Value1-7/8"
AttributeL	Value60 mm	Value2-3/8"
AttributeM	Value5/8"-11UNC mm	Value5/8"-11UNC
AttributeN	Value38 mm	Value1-1/2"

Load ring VLBG-Z 2,5t 3/4"-10UNC with RUD-bolt (8502351)

Article number: 8502351

Attribute	Value	Value
Attributeweight	Value1.30 kg	Value2.87 lbs
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value110 mm	Value4-11/32"
AttributeA	Value50 mm	Value1-31/32"
AttributeB	Value82 mm	Value3-1/4"
AttributeC	Value54 mm	Value2-1/8"
AttributeD	Value45 mm	Value1-25/32"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value16,5 mm	Value21/32"
AttributeG	Value43 mm	Value1-11/16"
AttributeH	Value28 mm	Value1-1/8"
AttributeI	Value113 mm	Value4-7/16"
AttributeK	Value64 mm	Value2-1/2"
AttributeL	Value71 mm	Value2-13/16"
AttributeM	Value3/4"-10UNC mm	Value3/4"-10UNC
AttributeN	Value48 mm	Value1-7/8"

Load ring VLBG-Z 2,5t 7/8"-9UNC with RUD-bolt (8502352)

Article number: 8502352

Attribute	Value	Value
Attributeweight	Value1.25 kg	Value2.76 lbs
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value110 mm	Value4-11/32"
AttributeA	Value50 mm	Value1-31/32"
AttributeB	Value82 mm	Value3-1/4"
AttributeC	Value54 mm	Value2-1/8"
AttributeD	Value45 mm	Value1-25/32"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value16,5 mm	Value21/32"
AttributeG	Value43 mm	Value1-11/16"
AttributeH	Value27 mm	Value1-1/16"
AttributeI	Value113 mm	Value4-7/16"
AttributeK	Value64 mm	Value2-1/2"
AttributeL	Value70 mm	Value2-3/4"
AttributeM	Value7/8"-9UNC mm	Value7/8"-9UNC
AttributeN	Value48 mm	Value1-7/8"

Load ring VLBG-Z 4t 1"-8UNC with RUD-bolt (8502353)

Article number: 8502353

Attribute	Value	Value
Attributeweight	Value1.50 kg	Value3.31 lbs
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value125 mm	Value4-15/16"
AttributeA	Value50 mm	Value1-31/32"
AttributeB	Value82 mm	Value3-1/4"
AttributeC	Value54 mm	Value2-1/8"
AttributeD	Value45 mm	Value1-25/32"
AttributeE	Value67 mm	Value2-5/8"
AttributeF	Value18 mm	Value23/32"
AttributeG	Value43 mm	Value1-11/16"
AttributeH	Value41 mm	Value1-5/8"
AttributeI	Value130 mm	Value5-1/8"
AttributeK	Value78 mm	Value3-1/16"
AttributeL	Value84 mm	Value3-5/16"
AttributeM	Value1"-8UNC mm	Value1"-8UNC
AttributeN	Value48 mm	Value1-7/8"

Load ring VLBG-Z 5t 1 1/4"-7UNC with RUD-bolt (8503187)

Article number: 8503187

Attribute	Value	Value
Attributeweight	Value3.33 kg	Value7.34 lbs
AttributeNominal WLL	Value5000 kg	Value11000 lbs
AttributeT	Value147 mm	Value5-25/32"
AttributeA	Value60 mm	Value2-3/8"
AttributeB	Value103 mm	Value4-1/16"
AttributeC	Value65 mm	Value2-9/16"
AttributeD	Value60 mm	Value2-3/8"
AttributeE	Value64 mm	Value2-1/2"
AttributeF	Value22,5 mm	Value7/8"
AttributeG	Value61 mm	Value2-13/32"
AttributeH	Value41 mm	Value1-5/8"
AttributeI	Value151 mm	Value5-15/16"
AttributeK	Value80 mm	Value3-1/8"
AttributeL	Value102 mm	Value4"
AttributeM	Value1 1/4"-7UNC mm	Value1 1/4"-7UNC
AttributeN	Value67 mm	Value2-5/8"

Load ring VLBG-Z 5t 1 1/4"-8UN with RUD-bolt (8502354)

Article number: 8502354

Attribute	Value	Value
Attributeweight	Value3.33 kg	Value7.34 lbs
AttributeNominal WLL	Value5000 kg	Value11000 lbs
AttributeT	Value147 mm	Value5-25/32"
AttributeA	Value60 mm	Value2-3/8"
AttributeB	Value103 mm	Value4-1/16"
AttributeC	Value65 mm	Value2-9/16"
AttributeD	Value60 mm	Value2-3/8"
AttributeE	Value64 mm	Value2-1/2"
AttributeF	Value22,5 mm	Value7/8"
AttributeG	Value61 mm	Value2-13/32"
AttributeH	Value41 mm	Value1-5/8"
AttributeI	Value151 mm	Value5-15/16"
AttributeK	Value80 mm	Value3-1/8"
AttributeL	Value102 mm	Value4"
AttributeM	Value1 1/4"-8UN mm	Value1 1/4"-8UN
AttributeN	Value67 mm	Value2-5/8"

Load ring VLBG-Z 8t 1 1/2"-6UNC with RUD-bolt (8504257)

Article number: 8504257

Attribute	Value	Value
Attributeweight	Value6.14 kg	Value13.54 lbs
AttributeNominal WLL	Value8000 kg	Value17600 lbs
AttributeT	Value197 mm	Value7-3/4"
AttributeA	Value77 mm	Value3"-1/32"
AttributeB	Value122 mm	Value4-13/16"
AttributeC	Value82 mm	Value3-1/4"
AttributeD	Value70 mm	Value2-3/4"
AttributeE	Value97 mm	Value3-13/16"
AttributeF	Value26,5 mm	Value1-3/64"
AttributeG	Value77 mm	Value3"-1/32"
AttributeH	Value62 mm	Value2-7/16"
AttributeI	Value205 mm	Value8-1/16"
AttributeK	Value110 mm	Value4-11/32"
AttributeL	Value140 mm	Value5-1/2"
AttributeM	Value1 1/2"-6UNC mm	Value1 1/2"-6UNC
AttributeN	Value87 mm	Value3-7/16"

Load ring VLBG-Z 20t 2"-4 1/2 UNC with RUD-bolt (8504258)

Article number: 8504258

Attribute	Value	Value
Attributeweight	Value11.77 kg	Value25.95 lbs
AttributeNominal WLL	Value20000 kg	Value44000 lbs
AttributeT	Value222 mm	Value8-3/4"
AttributeA	Value95 mm	Value3-3/4"
AttributeB	Value156 mm	Value6-5/32"
AttributeC	Value100 mm	Value3-15/16"
AttributeD	Value95 mm	Value3-3/4"
AttributeE	Value105 mm	Value4-1/8"
AttributeF	Value36 mm	Value1-27/64"
AttributeG	Value87 mm	Value3-7/16"
AttributeH	Value69 mm	Value2-23/32"
AttributeI	Value230 mm	Value9-1/16"
AttributeK	Value130 mm	Value5-1/8"
AttributeL	Value156 mm	Value6-5/32"
AttributeM	Value2"-4 1/2 UNC mm	Value2"-4 1/2 UNC
AttributeN	Value100 mm	Value3-15/16"
