RUD sling and lashing systems

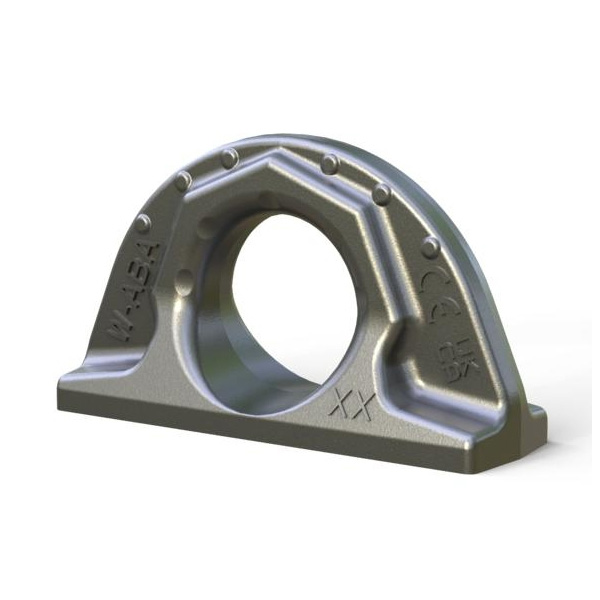

ABA Lifting point for welding

Ready and indestructible – from all directions

4:1 safety against breaking
Patented markings for easy determination for withdraw of service
Tempered base body, therefore wear-resistant

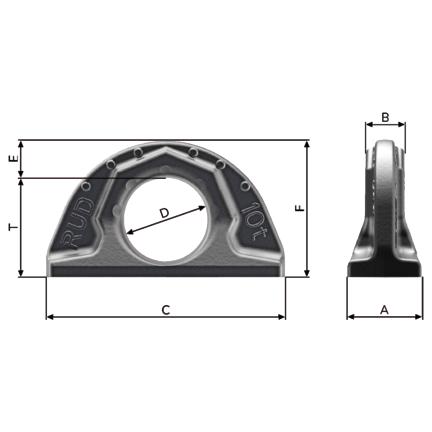

ABA 0,8t - lifting point for welding, loadable from any direction (7907698)

Article number: 7907698

ABA 0,8t - lifting point for welding, loadable from any direction

Attribute	Value	Value
Attributeweight	Value0.20 kg	Value0.44 lbs
AttributeNominal WLL	Value800 kg	Value1760 lbs
AttributeT	Value38 mm	Value1-1/2"
AttributeA	Value22 mm	Value7/8"
AttributeB	Value12 mm	Value15/32"
AttributeC	Value70 mm	Value2-3/4"
AttributeD	Value32 mm	Value1-1/4"
AttributeE	Value12 mm	Value15/32"
AttributeF	Value50 mm	Value1-31/32"

ABA 1,6t - lifting point for welding, loadable from any direction (7900352)

Article number: 7900352

ABA 1,6t - lifting point for welding, loadable from any direction

Attribute	Value	Value
Attributeweight	Value0.45 kg	Value0.99 lbs
AttributeNominal WLL	Value1600 kg	Value3520 lbs
AttributeT	Value42 mm	Value1-21/32"
AttributeA	Value30 mm	Value1-3/16"
AttributeB	Value16 mm	Value5/8"
AttributeC	Value100 mm	Value3-15/16"
AttributeD	Value35 mm	Value1-3/8"
AttributeE	Value16 mm	Value5/8"
AttributeF	Value57 mm	Value2-1/4"

ABA 3,2t - lifting point for welding, loadable from any direction (7900353)

Article number: 7900353

ABA 3,2t - lifting point for welding, loadable from any direction

Attribute	Value	Value
Attributeweight	Value1.15 kg	Value2.54 lbs
AttributeNominal WLL	Value3200 kg	Value7050 lbs
AttributeT	Value59 mm	Value2-15/16"
AttributeA	Value41 mm	Value1-5/8"
AttributeB	Value23 mm	Value29/32"
AttributeC	Value137 mm	Value5-3/8"
AttributeD	Value50 mm	Value1-31/32"
AttributeE	Value21 mm	Value13/16"
AttributeF	Value80 mm	Value3-1/8"

ABA 5t - lifting point for welding, loadable from any direction (7900354)

Article number: 7900354

ABA 5t - lifting point for welding, loadable from any direction

Attribute	Value	Value
Attributeweight	Value2.26 kg	Value4.98 lbs
AttributeNominal WLL	Value5000 kg	Value11000 lbs
AttributeT	Value72 mm	Value2-27/32"
AttributeA	Value51 mm	Value2"
AttributeB	Value27 mm	Value1-1/16"
AttributeC	Value172 mm	Value6-25/32"
AttributeD	Value60 mm	Value2-3/8"
AttributeE	Value28 mm	Value1-1/8"
AttributeF	Value99 mm	Value3-7/8"

ABA 10t - lifting point for welding, loadable from any direction (7900355)

Article number: 7900355

ABA 10t - lifting point for welding, loadable from any direction

Attribute	Value	Value
Attributeweight	Value5.37 kg	Value11.84 lbs
AttributeNominal WLL	Value10000 kg	Value22000 lbs
AttributeT	Value95 mm	Value3-3/4"
AttributeA	Value70 mm	Value2-3/4"
AttributeB	Value38 mm	Value1-1/2"
AttributeC	Value228 mm	Value9"
AttributeD	Value80 mm	Value3-1/8"
AttributeE	Value35 mm	Value1-3/8"
AttributeF	Value130 mm	Value5-1/8"

ABA 20t - lifting point for welding, loadable from any direction (7902174)

Article number: 7902174

ABA 20t - lifting point for welding, loadable from any direction

Attribute	Value	Value
Attributeweight	Value10.72 kg	Value23.63 lbs
AttributeNominal WLL	Value20000 kg	Value44000 lbs
AttributeT	Value135 mm	Value5-5/16"
AttributeA	Value90 mm	Value3-17/32"
AttributeB	Value52 mm	Value2-1/16"
AttributeC	Value272 mm	Value10-11/16"
AttributeD	Value115 mm	Value4-1/2"
AttributeE	Value40 mm	Value1-9/16"
AttributeF	Value175 mm	Value6-7/8"

ABA 31,5t - lifting point for welding, loadable from any direction (7902175)

Article number: 7902175

ABA 31,5t - lifting point for welding, loadable from any direction

Attribute	Value	Value
Attributeweight	Value18.33 kg	Value40.41 lbs
AttributeNominal WLL	Value31500 kg	Value69300 lbs
AttributeT	Value154 mm	Value6-1/16"
AttributeA	Value108 mm	Value4-1/4"
AttributeB	Value64 mm	Value2-1/2"
AttributeC	Value320 mm	Value12-19/32"
AttributeD	Value130 mm	Value5-1/8"
AttributeE	Value50 mm	Value1-31/32"
AttributeF	Value204 mm	Value8-1/32"
