RUD sling and lashing systems

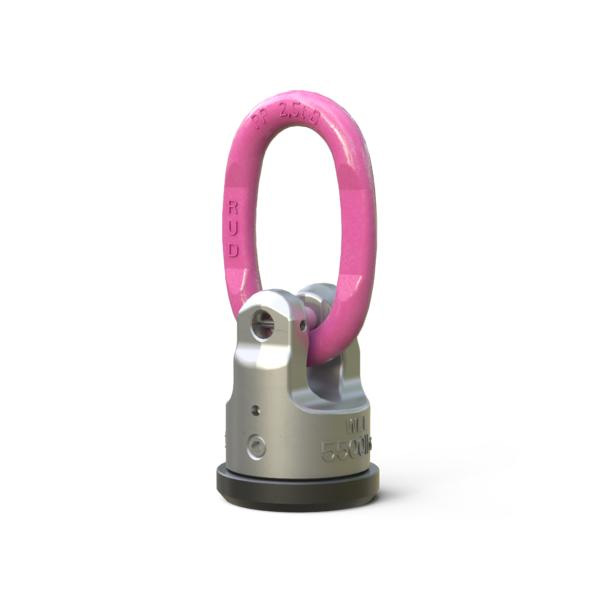

WPP-B PowerPoint® ring connection

Universal connection with many attachment options

Rotating 360°, pivoting 230°
Universal, unmistakable VIP connection for chain, hook and eye
Double ball bearing for rotating and turning actions

PowerPoint WPP-B-0,63t (7989954)

Article number: 7989954

PowerPoint WPP-B-0,63t

Attribute	Value	Value
Attributeweight	Value0.35 kg	Value0.77 lbs
AttributeNominal WLL	Value630 kg	Value1385 lbs
AttributeT	Value105 mm	Value4-1/8"
AttributeA	Value9 mm	Value11/32"
AttributeB	Value65 mm	Value2-9/16"
AttributeC	Value35 mm	Value1-3/8"
AttributeD	Value40 mm	Value1-9/16"
AttributeG	Value40 mm	Value1-9/16"
AttributeN	Value15 mm	Value19/32"

PowerPoint WPP-B-1,5t (7989955)

Article number: 7989955

PowerPoint WPP-B-1,5t

Attribute	Value	Value
Attributeweight	Value0.40 kg	Value0.88 lbs
AttributeNominal WLL	Value1500 kg	Value3300 lbs
AttributeT	Value115 mm	Value4-1/2"
AttributeA	Value11 mm	Value7/16"
AttributeB	Value65 mm	Value2-9/16"
AttributeC	Value35 mm	Value1-3/8"
AttributeD	Value46 mm	Value1-13/16"
AttributeG	Value50 mm	Value1-31/32"
AttributeN	Value15 mm	Value19/32"

PowerPoint WPP-B-2,5t (7989956)

Article number: 7989956

PowerPoint WPP-B-2,5t

Attribute	Value	Value
Attributeweight	Value1.00 kg	Value2.20 lbs
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value135 mm	Value5-5/16"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value74 mm	Value2-29/32"
AttributeC	Value40 mm	Value1-9/16"
AttributeD	Value61 mm	Value2-13/32"
AttributeG	Value61 mm	Value2-13/32"
AttributeN	Value18 mm	Value23/32"

PowerPoint WPP-B-4t (7989957)

Article number: 7989957

PowerPoint WPP-B-4t

Attribute	Value	Value
Attributeweight	Value2.30 kg	Value5.07 lbs
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value172 mm	Value6-25/32"
AttributeA	Value16 mm	Value5/8"
AttributeB	Value95 mm	Value3-3/4"
AttributeC	Value45 mm	Value1-25/32"
AttributeD	Value78 mm	Value3-1/16"
AttributeG	Value77 mm	Value3"-1/32"
AttributeN	Value20 mm	Value3/4"

PowerPoint WPP-B-5t (7989958)

Article number: 7989958

PowerPoint WPP-B-5t

Attribute	Value	Value
Attributeweight	Value4.70 kg	Value10.36 lbs
AttributeNominal WLL	Value5000 kg	Value11000 lbs
AttributeT	Value223 mm	Value8-25/32"
AttributeA	Value19 mm	Value3/4"
AttributeB	Value130 mm	Value5-1/8"
AttributeC	Value60 mm	Value2-3/8"
AttributeD	Value95 mm	Value3-3/4"
AttributeG	Value93 mm	Value3-21/32"
AttributeN	Value25 mm	Value63/64"

PowerPoint WPP-B-8t (7989959)

Article number: 7989959

PowerPoint WPP-B-8t

Attribute	Value	Value
Attributeweight	Value5.30 kg	Value11.68 lbs
AttributeNominal WLL	Value8000 kg	Value17600 lbs
AttributeT	Value242 mm	Value9-7/32"
AttributeA	Value24 mm	Value15/16"
AttributeB	Value140 mm	Value5-1/2"
AttributeC	Value65 mm	Value2-9/16"
AttributeD	Value100 mm	Value3-15/16"
AttributeG	Value102 mm	Value4"
AttributeN	Value28 mm	Value1-1/8"

VWBS 40(50)t (7903650)

Article number: 7903650

VWBS 40(50)t

Attribute	Value	Value
Attributeweight	Value27.90 kg	Value61.51 lbs
AttributeNominal WLL	Value40000 kg	Value88000 lbs
AttributeT	Value380 mm	Value15"
AttributeA	Value46 mm	Value1-13/16"
AttributeB	Value170 mm	Value6-11/16"
AttributeC	Value110 mm	Value4-11/32"
AttributeD	Value170 mm	Value6-11/16"
AttributeG	Value161 mm	Value6-11/32"
AttributeN	Value55 mm	Value2-5/32"
