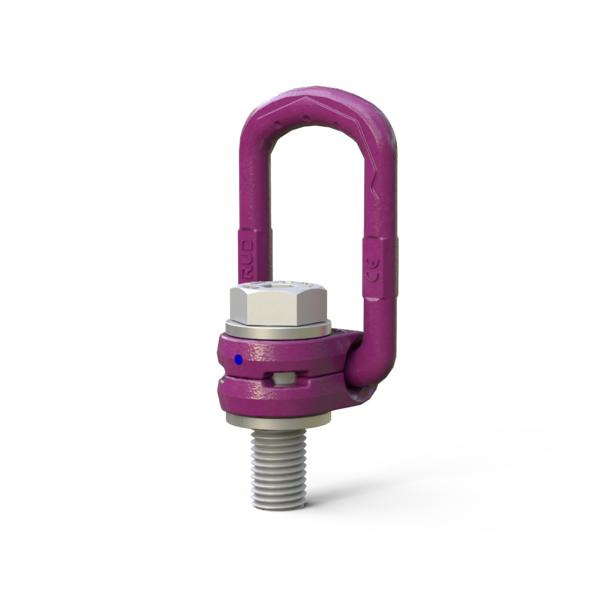

VLBG-PLUS Load ring, metric thread

Tried and tested – full WLL in all directions

Optimum WLL with captive but exchangable ICE-Bolt
Bracket adjustable in force direction
Comprehensive range of threads

Load ring VLBG-PLUS 0,63t M8 with ICE-bolt (8504651)

Article number: 8504651

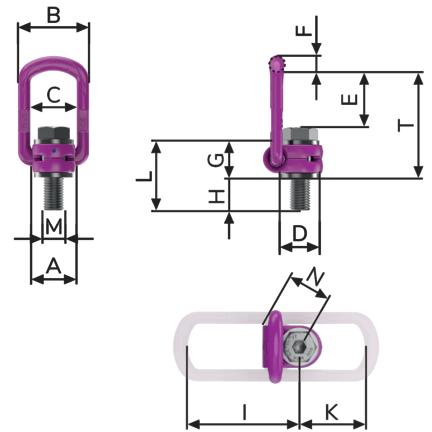

Attribute	Value	Value
Attributeweight	Value0.30 kg	Value0.66 lbs
AttributeNominal WLL	Value630 kg	Value1385 lbs
AttributeT	Value75 mm	Value2-15/16"
AttributeA	Value30 mm	Value1-3/16"
AttributeB	Value54 mm	Value2-1/8"
AttributeC	Value34 mm	Value1-11/32"
AttributeD	Value24 mm	Value15/16"
AttributeE	Value40 mm	Value1-9/16"
AttributeF	Value10 mm	Value3/8"
AttributeG	Value29 mm	Value1-5/32"
AttributeH	Value11 mm	Value7/16"
AttributeI	Value75 mm	Value2-15/16"
AttributeK	Value45 mm	Value1-25/32"
AttributeL	Value40 mm	Value1-9/16"
AttributeM	ValueM8 mm	ValueM8
AttributeN	Value32 mm	Value1-1/4"

Load ring VLBG-PLUS 0,9t M10 with ICE-bolt (8504652)

Article number: 8504652

Attribute	Value	Value
Attributeweight	Value0.31 kg	Value0.68 lbs
AttributeNominal WLL	Value900 kg	Value1980 lbs
AttributeT	Value75 mm	Value2-15/16"
AttributeA	Value30 mm	Value1-3/16"
AttributeB	Value54 mm	Value2-1/8"
AttributeC	Value34 mm	Value1-11/32"
AttributeD	Value24 mm	Value15/16"
AttributeE	Value39 mm	Value1-9/16"
AttributeF	Value10 mm	Value3/8"
AttributeG	Value29 mm	Value1-5/32"
AttributeH	Value15 mm	Value19/32"
AttributeI	Value75 mm	Value2-15/16"
AttributeK	Value45 mm	Value1-25/32"
AttributeL	Value44 mm	Value1-3/4"
AttributeM	ValueM10 mm	ValueM10
AttributeN	Value32 mm	Value1-1/4"

Load ring VLBG-PLUS 1,35t M12 with ICE-bolt (8504653)

Article number: 8504653

Attribute	Value	Value
Attributeweight	Value0.34 kg	Value0.75 lbs
AttributeNominal WLL	Value1350 kg	Value2970 lbs
AttributeT	Value75 mm	Value2-15/16"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value54 mm	Value2-1/8"
AttributeC	Value34 mm	Value1-11/32"
AttributeD	Value26 mm	Value1"
AttributeE	Value38 mm	Value1-1/2"
AttributeF	Value10 mm	Value3/8"
AttributeG	Value29 mm	Value1-5/32"
AttributeH	Value18 mm	Value23/32"
AttributeI	Value75 mm	Value2-15/16"
AttributeK	Value45 mm	Value1-25/32"
AttributeL	Value47 mm	Value1-7/8"
AttributeM	ValueM12 mm	ValueM12
AttributeN	Value32 mm	Value1-1/4"

Load ring VLBG-PLUS 2t M16 with ICE-bolt (8504655)

Article number: 8504655

Attribute	Value	Value
Attributeweight	Value0.55 kg	Value1.21 lbs
AttributeNominal WLL	Value2000 kg	Value4400 lbs
AttributeT	Value85 mm	Value3-11/32"
AttributeA	Value33 mm	Value1-5/16"
AttributeB	Value56 mm	Value2-3/16"
AttributeC	Value36 mm	Value1-27/64"
AttributeD	Value30 mm	Value1-3/16"
AttributeE	Value39 mm	Value1-9/16"
AttributeF	Value13,5 mm	Value17/32"
AttributeG	Value36 mm	Value1-27/64"
AttributeH	Value22 mm	Value7/8"
AttributeI	Value86 mm	Value3-3/8"
AttributeK	Value47 mm	Value1-7/8"
AttributeL	Value58 mm	Value2-9/32"
AttributeM	ValueM16 mm	ValueM16
AttributeN	Value38 mm	Value1-1/2"

Load ring VLBG-PLUS 3,5t M20 with ICE-bolt (8504657)

Article number: 8504657

Attribute	Value	Value
Attributeweight	Value1.30 kg	Value2.87 lbs
AttributeNominal WLL	Value3500 kg	Value7700 lbs
AttributeT	Value110 mm	Value4-11/32"
AttributeA	Value50 mm	Value1-31/32"
AttributeB	Value82 mm	Value3-1/4"
AttributeC	Value54 mm	Value2-1/8"
AttributeD	Value45 mm	Value1-25/32"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value16,5 mm	Value21/32"
AttributeG	Value43 mm	Value1-11/16"
AttributeH	Value32 mm	Value1-1/4"
AttributeI	Value113 mm	Value4-7/16"
AttributeK	Value64 mm	Value2-1/2"
AttributeL	Value75 mm	Value2-15/16"
AttributeM	ValueM20 mm	ValueM20
AttributeN	Value48 mm	Value1-7/8"

Load ring VLBG-PLUS 4,5t M24 with ICE-bolt (8504659)

Article number: 8504659

Attribute	Value	Value
Attributeweight	Value1.40 kg	Value3.09 lbs
AttributeNominal WLL	Value4500 kg	Value9900 lbs
AttributeT	Value125 mm	Value4-15/16"
AttributeA	Value50 mm	Value1-31/32"
AttributeB	Value82 mm	Value3-1/4"
AttributeC	Value54 mm	Value2-1/8"
AttributeD	Value45 mm	Value1-25/32"
AttributeE	Value67 mm	Value2-5/8"
AttributeF	Value18 mm	Value23/32"
AttributeG	Value43 mm	Value1-11/16"
AttributeH	Value37 mm	Value1-7/16"
AttributeI	Value130 mm	Value5-1/8"
AttributeK	Value78 mm	Value3-1/16"
AttributeL	Value80 mm	Value3-1/8"
AttributeM	ValueM24 mm	ValueM24
AttributeN	Value48 mm	Value1-7/8"

Load ring VLBG-PLUS 6,7t M30 with RUD-bolt (8504661)

Article number: 8504661

Attribute	Value	Value
Attributeweight	Value3.22 kg	Value7.10 lbs
AttributeNominal WLL	Value6700 kg	Value14740 lbs
AttributeT	Value147 mm	Value5-25/32"
AttributeA	Value60 mm	Value2-3/8"
AttributeB	Value103 mm	Value4-1/16"
AttributeC	Value65 mm	Value2-9/16"
AttributeD	Value60 mm	Value2-3/8"
AttributeE	Value67 mm	Value2-5/8"
AttributeF	Value22,5 mm	Value7/8"
AttributeG	Value61 mm	Value2-13/32"
AttributeH	Value49 mm	Value1-15/16"
AttributeI	Value151 mm	Value5-15/16"
AttributeK	Value80 mm	Value3-1/8"
AttributeL	Value110 mm	Value4-11/32"
AttributeM	ValueM30 mm	ValueM30
AttributeN	Value67 mm	Value2-5/8"

Load ring VLBG-PLUS 8t M36 with RUD-bolt (7983553)

Article number: 7983553

Attribute	Value	Value
Attributeweight	Value6.00 kg	Value13.23 lbs
AttributeNominal WLL	Value8000 kg	Value17600 lbs
AttributeT	Value197 mm	Value7-3/4"
AttributeA	Value77 mm	Value3"-1/32"
AttributeB	Value122 mm	Value4-13/16"
AttributeC	Value82 mm	Value3-1/4"
AttributeD	Value70 mm	Value2-3/4"
AttributeE	Value97 mm	Value3-13/16"
AttributeF	Value26,5 mm	Value1-3/64"
AttributeG	Value77 mm	Value3"-1/32"
AttributeH	Value63 mm	Value2-15/32"
AttributeI	Value205 mm	Value8-1/16"
AttributeK	Value110 mm	Value4-11/32"
AttributeL	Value140 mm	Value5-1/2"
AttributeM	ValueM36 mm	ValueM36
AttributeN	Value87 mm	Value3-7/16"

Load ring VLBG-PLUS 10t M42 with RUD-bolt (7983554)

Article number: 7983554

Attribute	Value	Value
Attributeweight	Value6.60 kg	Value14.55 lbs
AttributeNominal WLL	Value10000 kg	Value22000 lbs
AttributeT	Value197 mm	Value7-3/4"
AttributeA	Value77 mm	Value3"-1/32"
AttributeB	Value122 mm	Value4-13/16"
AttributeC	Value82 mm	Value3-1/4"
AttributeD	Value70 mm	Value2-3/4"
AttributeE	Value94 mm	Value3-11/16"
AttributeF	Value26,5 mm	Value1-3/64"
AttributeG	Value77 mm	Value3"-1/32"
AttributeH	Value73 mm	Value2-7/8"
AttributeI	Value205 mm	Value8-1/16"
AttributeK	Value110 mm	Value4-11/32"
AttributeL	Value150 mm	Value5-7/8"
AttributeM	ValueM42 mm	ValueM42
AttributeN	Value70 mm	Value2-3/4"

Load ring VLBG-PLUS 15t M42 with RUD-bolt (7982966)

Article number: 7982966

Attribute	Value	Value
Attributeweight	Value10.90 kg	Value24.03 lbs
AttributeNominal WLL	Value15000 kg	Value33000 lbs
AttributeT	Value222 mm	Value8-3/4"
AttributeA	Value95 mm	Value3-3/4"
AttributeB	Value156 mm	Value6-5/32"
AttributeC	Value100 mm	Value3-15/16"
AttributeD	Value85 mm	Value3-11/32"
AttributeE	Value109 mm	Value4-5/16"
AttributeF	Value36 mm	Value1-27/64"
AttributeG	Value87 mm	Value3-7/16"
AttributeH	Value63 mm	Value2-15/32"
AttributeI	Value230 mm	Value9-1/16"
AttributeK	Value130 mm	Value5-1/8"
AttributeL	Value150 mm	Value5-7/8"
AttributeM	ValueM42 mm	ValueM42
AttributeN	Value100 mm	Value3-15/16"

Load ring VLBG-PLUS 20t M48 with RUD-bolt (7982967)

Article number: 7982967

Attribute	Value	Value
Attributeweight	Value11.60 kg	Value25.57 lbs
AttributeNominal WLL	Value20000 kg	Value44000 lbs
AttributeT	Value222 mm	Value8-3/4"
AttributeA	Value95 mm	Value3-3/4"
AttributeB	Value156 mm	Value6-5/32"
AttributeC	Value100 mm	Value3-15/16"
AttributeD	Value95 mm	Value3-3/4"
AttributeE	Value105 mm	Value4-1/8"
AttributeF	Value36 mm	Value1-27/64"
AttributeG	Value87 mm	Value3-7/16"
AttributeH	Value73 mm	Value2-7/8"
AttributeI	Value230 mm	Value9-1/16"
AttributeK	Value130 mm	Value5-1/8"
AttributeL	Value160 mm	Value6-13/32"
AttributeM	ValueM48 mm	ValueM48
AttributeN	Value100 mm	Value3-15/16"
