VWBG-V Load ring, UNC thread

Diversity, no matter how you turn it

Rotating 360°, pivoting 230°
Optical markings for easy determination for withdraw from service
Ball bearing

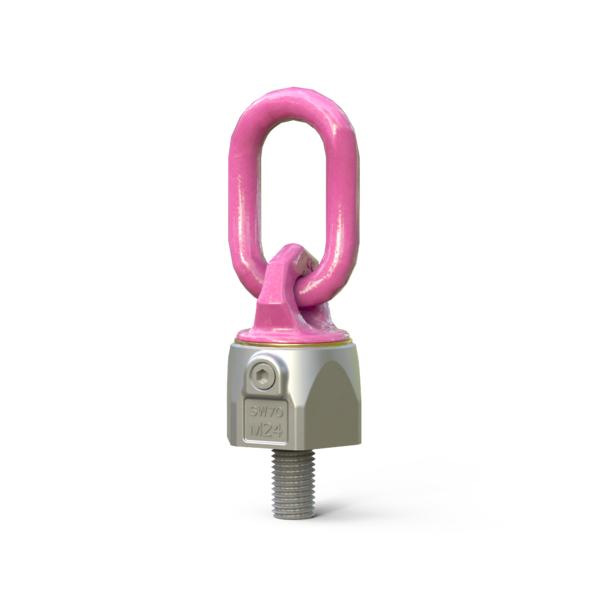

Lifting Point-Vario VWBG-V 0,3t-5/16"-18UNC (7991090)

Article number: 7991090

Lifting Point-Vario VWBG-V 0,3t-5/16 -18UNC

Attribute	Value	Value
Attributeweight	Value0.18 kg	Value0.40 lbs
AttributeNominal WLL	Value300 kg	Value660 lbs
AttributeT	Value76 mm	Value3"
AttributeA	Value8 mm	Value5/16"
AttributeB	Value31 mm	Value1-7/32"
AttributeC	Value29 mm	Value1-5/32"
AttributeD	Value30 mm	Value1-3/16"
AttributeE	Value27 mm	Value1-1/16"
AttributeF	Value13 mm	Value1/2"
AttributeG	Value36 mm	Value1-27/64"
AttributeM	Value5/16"-18UNC mm	Value5/16"-18UNC

Lifting Point-Vario VWBG-V 0,45t-3/8"-16UNC (7991091)

Article number: 7991091

Lifting Point-Vario VWBG-V 0,45t-3/8 -16UNC

Attribute	Value	Value
Attributeweight	Value0.29 kg	Value0.64 lbs
AttributeNominal WLL	Value450 kg	Value990 lbs
AttributeT	Value78 mm	Value3-1/16"
AttributeA	Value8 mm	Value5/16"
AttributeB	Value31 mm	Value1-7/32"
AttributeC	Value29 mm	Value1-5/32"
AttributeD	Value33,5 mm	Value1-27/64"
AttributeE	Value30 mm	Value1-3/16"
AttributeF	Value17 mm	Value43/64"
AttributeG	Value38 mm	Value1-1/2"
AttributeM	Value3/8"-16UNC mm	Value3/8"-16UNC

Lifting Point-Vario VWBG-V 0,6t-1/2"-13UNC (7991092)

Article number: 7991092

Lifting Point-Vario VWBG-V 0,6t-1/2 -13UNC

Attribute	Value	Value
Attributeweight	Value0.41 kg	Value0.90 lbs
AttributeNominal WLL	Value600 kg	Value1320 lbs
AttributeT	Value107 mm	Value4-7/32"
AttributeA	Value10 mm	Value3/8"
AttributeB	Value49 mm	Value1-15/16"
AttributeC	Value35 mm	Value1-3/8"
AttributeD	Value42 mm	Value1-21/32"
AttributeE	Value36 mm	Value1-27/64"
AttributeF	Value21 mm	Value13/16"
AttributeG	Value47 mm	Value1-7/8"
AttributeM	Value1/2"-13UNC mm	Value1/2"-13UNC

Lifting Point-Vario VWBG-V 1,3t-5/8"-11UNC (7991093)

Article number: 7991093

Lifting Point-Vario VWBG-V 1,3t-5/8 -11UNC

Attribute	Value	Value
Attributeweight	Value0.70 kg	Value1.54 lbs
AttributeNominal WLL	Value1300 kg	Value2860 lbs
AttributeT	Value114 mm	Value4-1/2"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value46 mm	Value1-13/16"
AttributeC	Value38 mm	Value1-1/2"
AttributeD	Value48 mm	Value1-7/8"
AttributeE	Value41 mm	Value1-5/8"
AttributeF	Value29 mm	Value1-5/32"
AttributeG	Value56 mm	Value2-3/16"
AttributeM	Value5/8"-11UNC mm	Value5/8"-11UNC

Lifting Point-Vario VWBG-V 2t-3/4"-10UNC (7991094)

Article number: 7991094

Lifting Point-Vario VWBG-V 2t-3/4 -10UNC

Attribute	Value	Value
Attributeweight	Value1.42 kg	Value3.13 lbs
AttributeNominal WLL	Value2000 kg	Value4400 lbs
AttributeT	Value137 mm	Value5-3/8"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value54 mm	Value2-1/8"
AttributeC	Value35 mm	Value1-3/8"
AttributeD	Value62 mm	Value2-7/16"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value28 mm	Value1-1/8"
AttributeG	Value67 mm	Value2-5/8"
AttributeM	Value3/4"-10UNC mm	Value3/4"-10UNC

Lifting Point-Vario VWBG-V 3,5t-1"-8UNC (7991095)

Article number: 7991095

Lifting Point-Vario VWBG-V 3,5t-1 -8UNC

Attribute	Value	Value
Attributeweight	Value2.63 kg	Value5.80 lbs
AttributeNominal WLL	Value3500 kg	Value7700 lbs
AttributeT	Value173 mm	Value6-13/16"
AttributeA	Value18 mm	Value23/32"
AttributeB	Value66 mm	Value2-5/8"
AttributeC	Value40 mm	Value1-9/16"
AttributeD	Value81 mm	Value3-3/16"
AttributeE	Value70 mm	Value2-3/4"
AttributeF	Value40 mm	Value1-9/16"
AttributeG	Value88 mm	Value3-15/32"
AttributeM	Value1"-8UNC mm	Value1"-8UNC

Lifting Point-Vario VWBG-V 5t-1 1/4"-7UNC (7991096)

Article number: 7991096

Lifting Point-Vario VWBG-V 5t-1 1/4 -7UNC

Attribute	Value	Value
Attributeweight	Value5.09 kg	Value11.22 lbs
AttributeNominal WLL	Value5000 kg	Value11000 lbs
AttributeT	Value221 mm	Value8-11/16"
AttributeA	Value22 mm	Value7/8"
AttributeB	Value90 mm	Value3-17/32"
AttributeC	Value50 mm	Value1-31/32"
AttributeD	Value99 mm	Value3-7/8"
AttributeE	Value85 mm	Value3-11/32"
AttributeF	Value47 mm	Value1-7/8"
AttributeG	Value106 mm	Value4-3/16"
AttributeM	Value1 1/4"-7UNC mm	Value1 1/4"-7UNC
