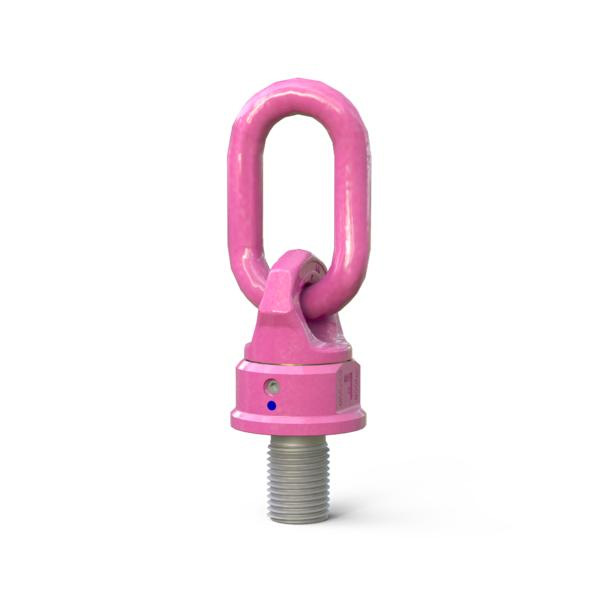

VWBG Load ring, BSW thread

Diversity, no matter how you turn it

Rotating 360°, pivoting 230°
Optical markings for easy determination for withdraw from service
Ball bearing

Lifting Point threaded VWBG 8t(10t)-1 1/2"-6BSW (F=57 mm) (8600451)

Article number: 8600451

Lifting Point threaded VWBG 8t(10t)-1 1/2 -6BSW (F=57 mm)

Attribute	Value	Value
Attributeweight	Value4.79 kg	Value10.56 lbs
AttributeNominal WLL	Value8000 kg	Value17600 lbs
AttributeT	Value208 mm	Value8-3/16"
AttributeA	Value22 mm	Value7/8"
AttributeB	Value86 mm	Value3-3/8"
AttributeC	Value50 mm	Value1-31/32"
AttributeD	Value90 mm	Value3-17/32"
AttributeE	Value80 mm	Value3-1/8"
AttributeF	Value57 mm	Value2-1/4"
AttributeG	Value94 mm	Value3-11/16"
AttributeM	Value1 1/2"-6BSW mm	Value1 1/2"-6BSW

Lifting Point threaded VWBG 12t(13t)-1 3/4"-5BSW (F=66 mm) (8600452)

Article number: 8600452

Lifting Point threaded VWBG 12t(13t)-1 3/4 -5BSW (F=66 mm)

Attribute	Value	Value
Attributeweight	Value6.14 kg	Value13.54 lbs
AttributeNominal WLL	Value12000 kg	Value26400 lbs
AttributeT	Value235 mm	Value9-1/4"
AttributeA	Value26 mm	Value1"
AttributeB	Value111 mm	Value4-13/32"
AttributeC	Value65 mm	Value2-9/16"
AttributeD	Value98 mm	Value3-27/32"
AttributeE	Value85 mm	Value3-11/32"
AttributeF	Value66 mm	Value2-5/8"
AttributeG	Value95 mm	Value3-3/4"
AttributeM	Value1 3/4"-5BSW mm	Value1 3/4"-5BSW

Lifting Point threaded VWBG 13t(16t)-2"-4,5BSW (F=76 mm) (8600453)

Article number: 8600453

Lifting Point threaded VWBG 13t(16t)-2 -4,5BSW (F=76 mm)

Attribute	Value	Value
Attributeweight	Value6.14 kg	Value13.54 lbs
AttributeNominal WLL	Value13000 kg	Value28600 lbs
AttributeT	Value235 mm	Value9-1/4"
AttributeA	Value26 mm	Value1"
AttributeB	Value111 mm	Value4-13/32"
AttributeC	Value65 mm	Value2-9/16"
AttributeD	Value98 mm	Value3-27/32"
AttributeE	Value85 mm	Value3-11/32"
AttributeF	Value76 mm	Value3"
AttributeG	Value95 mm	Value3-3/4"
AttributeM	Value2"-4,5BSW mm	Value2"-4,5BSW

Lifting Point threaded VWBG 16t(22t)-2 1/4"-4BSW (F=85 mm) (8600454)

Article number: 8600454

Lifting Point threaded VWBG 16t(22t)-2 1/4 -4BSW (F=85 mm)

Attribute	Value	Value
Attributeweight	Value11.00 kg	Value24.25 lbs
AttributeNominal WLL	Value16000 kg	Value35200 lbs
AttributeT	Value274 mm	Value10-25/32"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value119 mm	Value4-11/16"
AttributeC	Value70 mm	Value2-3/4"
AttributeD	Value120 mm	Value4-3/4"
AttributeE	Value95 mm	Value3-3/4"
AttributeF	Value85 mm	Value3-11/32"
AttributeG	Value120 mm	Value4-3/4"
AttributeM	Value2 1/4"-4BSW mm	Value2 1/4"-4BSW

Lifting Point threaded VWBG 16t(22t)-2 1/2"-4BSW (F=95 mm) (8600454)

Article number: 8600454

Lifting Point threaded VWBG 16t(22t)-2 1/2 -4BSW (F=95 mm)

Attribute	Value	Value
Attributeweight	Value11.00 kg	Value24.25 lbs
AttributeNominal WLL	Value16000 kg	Value35200 lbs
AttributeT	Value274 mm	Value10-25/32"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value119 mm	Value4-11/16"
AttributeC	Value70 mm	Value2-3/4"
AttributeD	Value120 mm	Value4-3/4"
AttributeE	Value95 mm	Value3-3/4"
AttributeF	Value95 mm	Value3-3/4"
AttributeG	Value120 mm	Value4-3/4"
AttributeM	Value2 1/2"-4BSW mm	Value2 1/2"-4BSW

Lifting Point threaded VWBG 16t(25t)-2 3/4"-3,5BSW (F=104 mm) (8600455)

Article number: 8600455

Lifting Point threaded VWBG 16t(25t)-2 3/4 -3,5BSW (F=104 mm)

Attribute	Value	Value
Attributeweight	Value12.03 kg	Value26.52 lbs
AttributeNominal WLL	Value16000 kg	Value35200 lbs
AttributeT	Value274 mm	Value10-25/32"
AttributeA	Value32 mm	Value1-1/4"
AttributeB	Value119 mm	Value4-11/16"
AttributeC	Value70 mm	Value2-3/4"
AttributeD	Value120 mm	Value4-3/4"
AttributeE	Value95 mm	Value3-3/4"
AttributeF	Value104 mm	Value4-3/32"
AttributeG	Value120 mm	Value4-3/4"
AttributeM	Value2 3/4"-3,5BSW mm	Value2 3/4"-3,5BSW

Lifting Point threaded VWBG 31,5t(40t)-3"-3,5BSW (F=114 mm) (8600456)

Article number: 8600456

Lifting Point threaded VWBG 31,5t(40t)-3 -3,5BSW (F=114 mm)

Attribute	Value	Value
Attributeweight	Value26.34 kg	Value58.07 lbs
AttributeNominal WLL	Value31500 kg	Value69300 lbs
AttributeT	Value338 mm	Value13-5/16"
AttributeA	Value46 mm	Value1-13/16"
AttributeB	Value130 mm	Value5-1/8"
AttributeC	Value90 mm	Value3-17/32"
AttributeD	Value170 mm	Value6-11/16"
AttributeE	Value145 mm	Value5-11/16"
AttributeF	Value114 mm	Value4-1/2"
AttributeG	Value159 mm	Value6-1/4"
AttributeM	Value3"-3,5BSW mm	Value3"-3,5BSW

Lifting Point threaded VWBG 35t(48t)-3 1/2"-3,25BSW (F=133 mm) (8600457)

Article number: 8600457

Lifting Point threaded VWBG 35t(48t)-3 1/2 -3,25BSW (F=133 mm)

Attribute	Value	Value
Attributeweight	Value28.07 kg	Value61.88 lbs
AttributeNominal WLL	Value35000 kg	Value77000 lbs
AttributeT	Value338 mm	Value13-5/16"
AttributeA	Value46 mm	Value1-13/16"
AttributeB	Value130 mm	Value5-1/8"
AttributeC	Value90 mm	Value3-17/32"
AttributeD	Value170 mm	Value6-11/16"
AttributeE	Value145 mm	Value5-11/16"
AttributeF	Value133 mm	Value5-15/64"
AttributeG	Value159 mm	Value6-1/4"
AttributeM	Value3 1/2"-3,25BSW mm	Value3 1/2"-3,25BSW

Lifting Point threaded VWBG 40t(50t)-4"-3BSW (F=150 mm) (8600458)

Article number: 8600458

Lifting Point threaded VWBG 40t(50t)-4 -3BSW (F=150 mm)

Attribute	Value	Value
Attributeweight	Value36.20 kg	Value79.81 lbs
AttributeNominal WLL	Value40000 kg	Value88000 lbs
AttributeT	Value378 mm	Value14-7/8"
AttributeA	Value46 mm	Value1-13/16"
AttributeB	Value170 mm	Value6-11/16"
AttributeC	Value110 mm	Value4-11/32"
AttributeD	Value170 mm	Value6-11/16"
AttributeE	Value145 mm	Value5-11/16"
AttributeF	Value150 mm	Value5-7/8"
AttributeG	Value159 mm	Value6-1/4"
AttributeM	Value4"-3BSW mm	Value4"-3BSW

Lifting Point threaded VWBG 40t(50t)-4 1/2"-2,875BSW (F=170 mm) (8600458)

Article number: 8600458

Lifting Point threaded VWBG 40t(50t)-4 1/2 -2,875BSW (F=170 mm)

Attribute	Value	Value
Attributeweight	Value38.05 kg	Value83.89 lbs
AttributeNominal WLL	Value40000 kg	Value88000 lbs
AttributeT	Value378 mm	Value14-7/8"
AttributeA	Value46 mm	Value1-13/16"
AttributeB	Value170 mm	Value6-11/16"
AttributeC	Value110 mm	Value4-11/32"
AttributeD	Value170 mm	Value6-11/16"
AttributeE	Value145 mm	Value5-11/16"
AttributeF	Value170 mm	Value6-11/16"
AttributeG	Value159 mm	Value6-1/4"
AttributeM	Value4 1/2"-2,875BSW mm	Value4 1/2"-2,875BSW

Lifting Point threaded VWBG 40t(50t)-5"-2,75BSW (F=190 mm) (8600458)

Article number: 8600458

Lifting Point threaded VWBG 40t(50t)-5 -2,75BSW (F=190 mm)

Attribute	Value	Value
Attributeweight	Value45.05 kg	Value99.32 lbs
AttributeNominal WLL	Value40000 kg	Value88000 lbs
AttributeT	Value378 mm	Value14-7/8"
AttributeA	Value46 mm	Value1-13/16"
AttributeB	Value170 mm	Value6-11/16"
AttributeC	Value110 mm	Value4-11/32"
AttributeD	Value170 mm	Value6-11/16"
AttributeE	Value145 mm	Value5-11/16"
AttributeF	Value190 mm	Value7-1/2"
AttributeG	Value159 mm	Value6-1/4"
AttributeM	Value5"-2,75BSW mm	Value5"-2,75BSW
