Rud Thailand

RUD sling and lashing systems

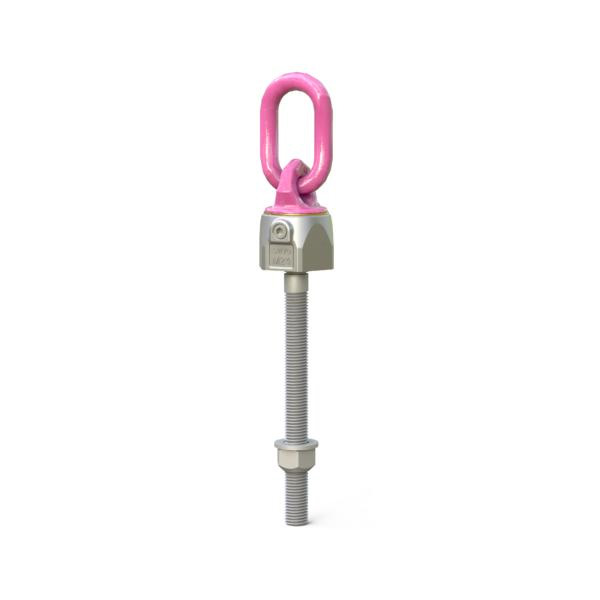

VWBG-V Load ring, metric thread with variable length, comes with locknut and washer

Diversity, no matter how you turn it

Rotating 360°, pivoting 230°
Optical markings for easy determination for withdraw from service
Ball bearing

Lifting Point-Vario VWBG-V 0,3-M8 with var. length (8600330)

Article number: 8600330

Lifting Point-Vario VWBG-V 0,3-M8 with var. length

Attribute	Value	Value
Attributeweight	Value0.0 kg	Value0.00 lbs
AttributeNominal WLL	Value300 kg	Value660 lbs
AttributeT	Value76 mm	Value3"
AttributeA	Value8 mm	Value5/16"
AttributeB	Value31 mm	Value1-7/32"
AttributeC	Value29 mm	Value1-5/32"
AttributeD	Value30 mm	Value1-3/16"
AttributeE	Value27 mm	Value1-1/16"
AttributeF	Value8-102 mm	Value8-102
AttributeG	Value36 mm	Value1-27/64"
AttributeM	ValueM8 mm	ValueM8

Lifting Point-Vario VWBG-V 0,45t-M10 with var. length (8600331)

Article number: 8600331

Lifting Point-Vario VWBG-V 0,45t-M10 with var. length

Attribute	Value	Value
Attributeweight	Value0.0 kg	Value0.00 lbs
AttributeNominal WLL	Value450 kg	Value990 lbs
AttributeT	Value78 mm	Value3-1/16"
AttributeA	Value8 mm	Value5/16"
AttributeB	Value31 mm	Value1-7/32"
AttributeC	Value29 mm	Value1-5/32"
AttributeD	Value33,5 mm	Value1-27/64"
AttributeE	Value30 mm	Value1-3/16"
AttributeF	Value10-122 mm	Value10-122
AttributeG	Value38 mm	Value1-1/2"
AttributeM	ValueM10 mm	ValueM10

Lifting Point-Vario VWBG-V 0,6t-M12 with var. length (8600332)

Article number: 8600332

Lifting Point-Vario VWBG-V 0,6t-M12 with var. length

Attribute	Value	Value
Attributeweight	Value0.0 kg	Value0.00 lbs
AttributeNominal WLL	Value600 kg	Value1320 lbs
AttributeT	Value107 mm	Value4-7/32"
AttributeA	Value10 mm	Value3/8"
AttributeB	Value49 mm	Value1-15/16"
AttributeC	Value35 mm	Value1-3/8"
AttributeD	Value42 mm	Value1-21/32"
AttributeE	Value36 mm	Value1-27/64"
AttributeF	Value12-140 mm	Value15/32" up to 5-1/2"
AttributeG	Value47 mm	Value1-7/8"
AttributeM	ValueM12 mm	ValueM12

Lifting Point-Vario VWBG-V 1t-M14 with var. length (8600337)

Article number: 8600337

Lifting Point-Vario VWBG-V 1t-M14 with var. length

Attribute	Value	Value
Attributeweight	Value0.0 kg	Value0.00 lbs
AttributeNominal WLL	Value1000 kg	Value2200 lbs
AttributeT	Value114 mm	Value4-1/2"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value46 mm	Value1-13/16"
AttributeC	Value38 mm	Value1-1/2"
AttributeD	Value48 mm	Value1-7/8"
AttributeE	Value41 mm	Value1-5/8"
AttributeF	Value14-160 mm	Value9/16" up to 6-19/64"
AttributeG	Value56 mm	Value2-3/16"
AttributeM	ValueM14 mm	ValueM14

Lifting Point-Vario VWBG-V 1,3t-M16 with var. length (8600333)

Article number: 8600333

Lifting Point-Vario VWBG-V 1,3t-M16 with var. length

Attribute	Value	Value
Attributeweight	Value0.0 kg	Value0.00 lbs
AttributeNominal WLL	Value1300 kg	Value2860 lbs
AttributeT	Value114 mm	Value4-1/2"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value46 mm	Value1-13/16"
AttributeC	Value38 mm	Value1-1/2"
AttributeD	Value48 mm	Value1-7/8"
AttributeE	Value41 mm	Value1-5/8"
AttributeF	Value16-180 mm	Value5/8" up to 7-1/16"
AttributeG	Value56 mm	Value2-3/16"
AttributeM	ValueM16 mm	ValueM16

Lifting Point-Vario VWBG-V 1,8t-M18 with var. length (8600338)

Article number: 8600338

Lifting Point-Vario VWBG-V 1,8t-M18 with var. length

Attribute	Value	Value
Attributeweight	Value0.0 kg	Value0.00 lbs
AttributeNominal WLL	Value1800 kg	Value3960 lbs
AttributeT	Value137 mm	Value5-3/8"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value54 mm	Value2-1/8"
AttributeC	Value35 mm	Value1-3/8"
AttributeD	Value62 mm	Value2-7/16"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value18-83 mm	Value23/32" up to 3-1/4"
AttributeG	Value67 mm	Value2-5/8"
AttributeM	ValueM18 mm	ValueM18

Lifting Point-Vario VWBG-V 2t-M20 with var. length (8600334)

Article number: 8600334

Lifting Point-Vario VWBG-V 2t-M20 with var. length

Attribute	Value	Value
Attributeweight	Value0.0 kg	Value0.00 lbs
AttributeNominal WLL	Value2000 kg	Value4400 lbs
AttributeT	Value137 mm	Value5-3/8"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value54 mm	Value2-1/8"
AttributeC	Value35 mm	Value1-3/8"
AttributeD	Value62 mm	Value2-7/16"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value20-223 mm	Value3/4" up to 8-25/32"
AttributeG	Value67 mm	Value2-5/8"
AttributeM	ValueM20 mm	ValueM20

Lifting Point-Vario VWBG-V 2t-M22 with var. length (8600334)

Article number: 8600334

Lifting Point-Vario VWBG-V 2t-M22 with var. length

Attribute	Value	Value
AttributeNominal WLL	Value2000 kg	Value4400 lbs
AttributeT	Value137 mm	Value5-3/8"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value54 mm	Value2-1/8"
AttributeC	Value35 mm	Value1-3/8"
AttributeD	Value62 mm	Value2-7/16"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value22-94 mm	Value7/8" up to 3-11/16"
AttributeG	Value67 mm	Value2-5/8"
AttributeM	ValueM22 mm	ValueM22

Lifting Point-Vario VWBG-V 3,5t-M24 (7100640)

Article number: 8600335

Lifting Point-Vario VWBG-V 3,5t-M24

Attribute	Value	Value
Attributeweight	Value0.0 kg	Value0.00 lbs
AttributeNominal WLL	Value3500 kg	Value7700 lbs
AttributeT	Value173 mm	Value6-13/16"
AttributeA	Value18 mm	Value23/32"
AttributeB	Value66 mm	Value2-5/8"
AttributeC	Value40 mm	Value1-9/16"
AttributeD	Value81 mm	Value3-3/16"
AttributeE	Value70 mm	Value2-3/4"
AttributeF	Value24-255 mm	Value1" up to 10"
AttributeG	Value88 mm	Value3-15/32"
AttributeM	ValueM24 mm	ValueM24

Lifting Point-Vario VWBG-V 3,5t-M27 with var. length (8600335)

Article number: 8600335

Lifting Point-Vario VWBG-V 3,5t-M27 with var. length

Attribute	Value	Value
AttributeNominal WLL	Value3500 kg	Value7700 lbs
AttributeT	Value173 mm	Value6-13/16"
AttributeA	Value18 mm	Value23/32"
AttributeB	Value66 mm	Value2-5/8"
AttributeC	Value40 mm	Value1-9/16"
AttributeD	Value81 mm	Value3-3/16"
AttributeE	Value70 mm	Value2-3/4"
AttributeF	Value27-92 mm	Value1-1/16" up to 3-5/8"
AttributeG	Value88 mm	Value3-15/32"
AttributeM	ValueM27 mm	ValueM27

Lifting Point-Vario VWBG-V 5,0-M30 with var. length (8600336)

Article number: 8600336

Lifting Point-Vario VWBG-V 5,0-M30 with var. length

Attribute	Value	Value
Attributeweight	Value0.0 kg	Value0.00 lbs
AttributeNominal WLL	Value5000 kg	Value11000 lbs
AttributeT	Value221 mm	Value8-11/16"
AttributeA	Value22 mm	Value7/8"
AttributeB	Value90 mm	Value3-17/32"
AttributeC	Value50 mm	Value1-31/32"
AttributeD	Value99 mm	Value3-7/8"
AttributeE	Value85 mm	Value3-11/32"
AttributeF	Value30-330 mm	Value1-3/16" up to 13"
AttributeG	Value106 mm	Value4-3/16"
AttributeM	ValueM30 mm	ValueM30
