RUD sling and lashing systems

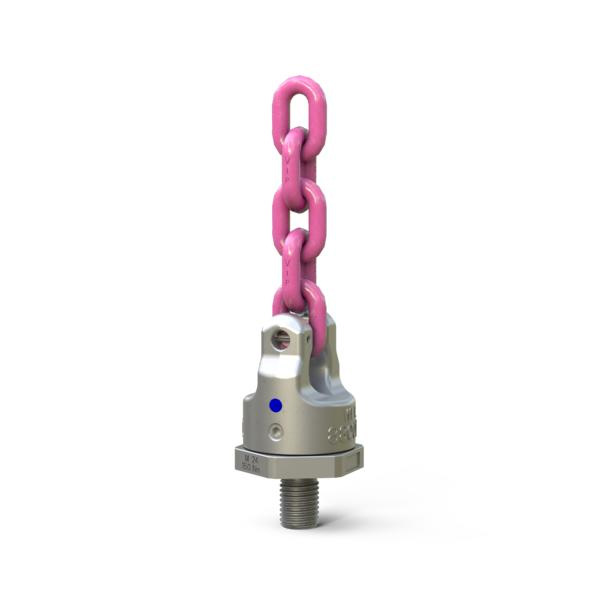

PP-VIP PowerPoint® Direct VIP chain connection, BSW thread
- Rotating 360°, pivoting 230°
- Universal, unmistakable VIP connection for chain, hook and eye
- Double ball bearing for turning/rotating operations
Article number: 8600571
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.24 kg | Value0.53 lbs |
| AttributeNominal WLL | Value630 kg | Value1385 lbs |
| AttributeT | Value41 mm | Value1-5/8" |
| AttributeA | Value4 mm | Value5/32" |
| AttributeD | Value40 mm | Value1-9/16" |
| AttributeE | Value36 mm | Value1-27/64" |
| AttributeF | Value18 mm | Value23/32" |
| AttributeM | Value1/2"-12BSW mm | Value1/2"-12BSW |
Article number: 8600573
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.93 kg | Value2.05 lbs |
| AttributeNominal WLL | Value2500 kg | Value5500 lbs |
| AttributeT | Value61 mm | Value2-13/32" |
| AttributeA | Value8 mm | Value5/16" |
| AttributeD | Value61 mm | Value2-13/32" |
| AttributeE | Value55 mm | Value2-5/32" |
| AttributeF | Value30 mm | Value1-3/16" |
| AttributeM | Value3/4"-10BSW mm | Value3/4"-10BSW |
Article number: 8600574
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value1.83 kg | Value4.03 lbs |
| AttributeNominal WLL | Value4000 kg | Value8800 lbs |
| AttributeT | Value77 mm | Value3"-1/32" |
| AttributeA | Value10 mm | Value3/8" |
| AttributeD | Value78 mm | Value3-1/16" |
| AttributeE | Value70 mm | Value2-3/4" |
| AttributeF | Value36 mm | Value1-27/64" |
| AttributeM | Value1"-8BSW mm | Value1"-8BSW |
Article number: 8600305
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value4.74 kg | Value10.45 lbs |
| AttributeNominal WLL | Value8000 kg | Value17600 lbs |
| AttributeT | Value102 mm | Value4" |
| AttributeA | Value16 mm | Value5/8" |
| AttributeD | Value100 mm | Value3-15/16" |
| AttributeE | Value90 mm | Value3-17/32" |
| AttributeF | Value54 mm | Value2-1/8" |
| AttributeM | Value1 1/2"-6BSW mm | Value1 1/2"-6BSW |
Article number: 8600305
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value4.74 kg | Value10.45 lbs |
| AttributeNominal WLL | Value8000 kg | Value17600 lbs |
| AttributeT | Value102 mm | Value4" |
| AttributeA | Value16 mm | Value5/8" |
| AttributeD | Value100 mm | Value3-15/16" |
| AttributeE | Value90 mm | Value3-17/32" |
| AttributeF | Value54 mm | Value2-1/8" |
| AttributeM | Value1 1/2"-8BSF mm | Value1 1/2"-8BSF |
