RUD sling and lashing systems

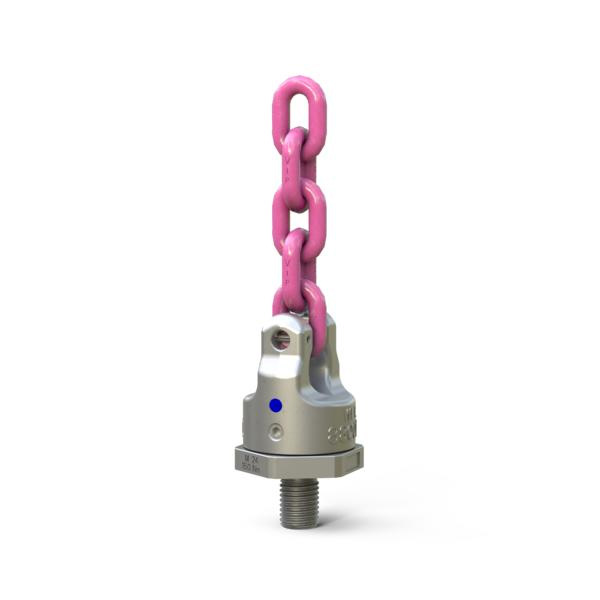

PP-VIP PowerPoint® Direct VIP chain connection, UNF thread
Easy to rotate and always the right connection- Rotating 360°, pivoting 230°
- Universal, unmistakable VIP connection for chain, hook and eye
- Double ball bearing for turning/rotating operations
Article number: 8600571
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.24 kg | Value0.53 lbs |
| AttributeNominal WLL | Value630 kg | Value1385 lbs |
| AttributeT | Value41 mm | Value1-5/8" |
| AttributeA | Value4 mm | Value5/32" |
| AttributeD | Value40 mm | Value1-9/16" |
| AttributeE | Value36 mm | Value1-27/64" |
| AttributeF | Value18 mm | Value23/32" |
| AttributeM | Value1/2"-20UNF mm | Value1/2"-20UNF |
Article number: 8600572
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.42 kg | Value0.93 lbs |
| AttributeNominal WLL | Value1500 kg | Value3300 lbs |
| AttributeT | Value50 mm | Value1-31/32" |
| AttributeA | Value6 mm | Value15/64" |
| AttributeD | Value46 mm | Value1-13/16" |
| AttributeE | Value41 mm | Value1-5/8" |
| AttributeF | Value24 mm | Value15/16" |
| AttributeM | Value5/8"-18UNF mm | Value5/8"-18UNF |
Article number: 8600573
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.93 kg | Value2.05 lbs |
| AttributeNominal WLL | Value2500 kg | Value5500 lbs |
| AttributeT | Value61 mm | Value2-13/32" |
| AttributeA | Value8 mm | Value5/16" |
| AttributeD | Value61 mm | Value2-13/32" |
| AttributeE | Value55 mm | Value2-5/32" |
| AttributeF | Value30 mm | Value1-3/16" |
| AttributeM | Value3/4"-16UNF mm | Value3/4"-16UNF |
Article number: 8600573
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value0.95 kg | Value2.09 lbs |
| AttributeNominal WLL | Value2500 kg | Value5500 lbs |
| AttributeT | Value61 mm | Value2-13/32" |
| AttributeA | Value8 mm | Value5/16" |
| AttributeD | Value61 mm | Value2-13/32" |
| AttributeE | Value55 mm | Value2-5/32" |
| AttributeF | Value30 mm | Value1-3/16" |
| AttributeM | Value7/8"-14UNF mm | Value7/8"-14UNF |
Article number: 8600574
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value1.83 kg | Value4.03 lbs |
| AttributeNominal WLL | Value4000 kg | Value8800 lbs |
| AttributeT | Value77 mm | Value3"-1/32" |
| AttributeA | Value10 mm | Value3/8" |
| AttributeD | Value78 mm | Value3-1/16" |
| AttributeE | Value70 mm | Value2-3/4" |
| AttributeF | Value36 mm | Value1-27/64" |
| AttributeM | Value1"-12UNF mm | Value1"-12UNF |
Article number: 8600575
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value3.50 kg | Value7.72 lbs |
| AttributeNominal WLL | Value5000 kg | Value11000 lbs |
| AttributeT | Value93 mm | Value3-21/32" |
| AttributeA | Value13 mm | Value1/2" |
| AttributeD | Value95 mm | Value3-3/4" |
| AttributeE | Value85 mm | Value3-11/32" |
| AttributeF | Value45 mm | Value1-25/32" |
| AttributeM | Value1 1/4"-12UNF mm | Value1 1/4"-12UNF |
Article number: 8600305
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value4.69 kg | Value10.34 lbs |
| AttributeNominal WLL | Value8000 kg | Value17600 lbs |
| AttributeT | Value100 mm | Value3-15/16" |
| AttributeA | Value16 mm | Value5/8" |
| AttributeD | Value100 mm | Value3-15/16" |
| AttributeE | Value90 mm | Value3-17/32" |
| AttributeF | Value39-300 mm | Value39-300 |
| AttributeM | Value1 1/2"-12UNF mm | Value1 1/2"-12UNF |
