RUD sling and lashing systems

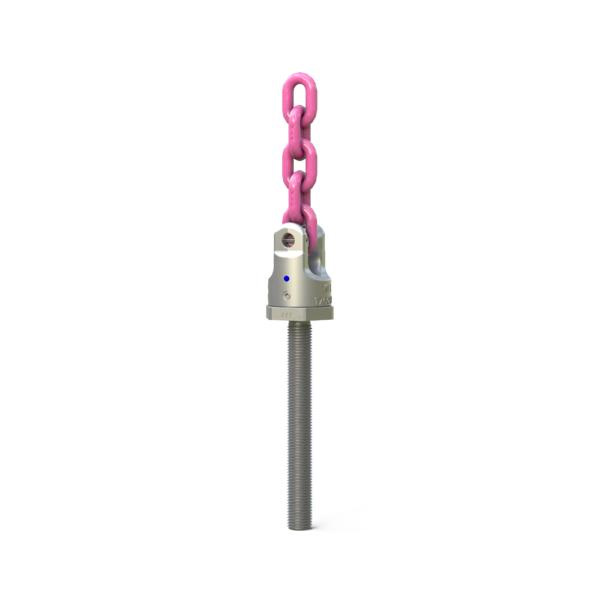

PP-VIP PowerPoint® direct VIP chain connection, metric fine-thread

Easy to rotate and always the right connection

Rotating 360°, pivoting 230°
Universal, unmistakable VIP connection for chain, hook and eye
Double ball bearing for turning/rotating operations

PowerPoint PP-VIP4-0,63t-M 12X0,75 with max-length F=18 mm (8600571)

Article number: 8600571

Attribute	Value	Value
Attributeweight	Value0.24 kg	Value0.53 lbs
AttributeNominal WLL	Value630 kg	Value1385 lbs
AttributeT	Value41 mm	Value1-5/8"
AttributeA	Value4 mm	Value5/32"
AttributeD	Value40 mm	Value1-9/16"
AttributeE	Value36 mm	Value1-27/64"
AttributeF	Value18 mm	Value23/32"
AttributeM	ValueM 12X0,75 mm	ValueM 12X0,75

PowerPoint PP-VIP4-0,63t-M12X1 with max-length F=18 mm (8600571)

Article number: 8600571

Attribute	Value	Value
Attributeweight	Value0.24 kg	Value0.53 lbs
AttributeNominal WLL	Value630 kg	Value1385 lbs
AttributeT	Value41 mm	Value1-5/8"
AttributeA	Value4 mm	Value5/32"
AttributeD	Value40 mm	Value1-9/16"
AttributeE	Value36 mm	Value1-27/64"
AttributeF	Value18 mm	Value23/32"
AttributeM	ValueM12X1 mm	ValueM12X1

PowerPoint PP-VIP4-0,63t-M12X1,25 with max-length F=18 mm (8600571)

Article number: 8600571

Attribute	Value	Value
Attributeweight	Value0.24 kg	Value0.53 lbs
AttributeNominal WLL	Value630 kg	Value1385 lbs
AttributeT	Value41 mm	Value1-5/8"
AttributeA	Value4 mm	Value5/32"
AttributeD	Value40 mm	Value1-9/16"
AttributeE	Value36 mm	Value1-27/64"
AttributeF	Value18 mm	Value23/32"
AttributeM	ValueM12X1,25 mm	ValueM12X1,25

PowerPoint PP-VIP4-0,63t-M12X1,5 with max-length F=18 mm (8600571)

Article number: 8600571

Attribute	Value	Value
Attributeweight	Value0.24 kg	Value0.53 lbs
AttributeNominal WLL	Value630 kg	Value1385 lbs
AttributeT	Value41 mm	Value1-5/8"
AttributeA	Value4 mm	Value5/32"
AttributeD	Value40 mm	Value1-9/16"
AttributeE	Value36 mm	Value1-27/64"
AttributeF	Value18 mm	Value23/32"
AttributeM	ValueM12X1,5 mm	ValueM12X1,5

PowerPoint PP-VIP6-1,5t-M 16X1 with max-length F=24 mm (8600572)

Article number: 8600572

Attribute	Value	Value
Attributeweight	Value0.42 kg	Value0.93 lbs
AttributeNominal WLL	Value1500 kg	Value3300 lbs
AttributeT	Value50 mm	Value1-31/32"
AttributeA	Value6 mm	Value15/64"
AttributeD	Value46 mm	Value1-13/16"
AttributeE	Value41 mm	Value1-5/8"
AttributeF	Value24 mm	Value15/16"
AttributeM	ValueM 16X1 mm	ValueM 16X1

PowerPoint PP-VIP6-1,5t-M 16X1,5 with max-length F=24 mm (8600275)

Article number: 8600275

Attribute	Value	Value
Attributeweight	Value0.42 kg	Value0.93 lbs
AttributeNominal WLL	Value1500 kg	Value3300 lbs
AttributeT	Value50 mm	Value1-31/32"
AttributeA	Value6 mm	Value15/64"
AttributeD	Value46 mm	Value1-13/16"
AttributeE	Value41 mm	Value1-5/8"
AttributeF	Value24 mm	Value15/16"
AttributeM	ValueM 16X1,5 mm	ValueM 16X1,5

PowerPoint PP-VIP8-2,5t-M 20X1 with max-length F=30 mm (8600573)

Article number: 8600573

Attribute	Value	Value
Attributeweight	Value0.93 kg	Value2.05 lbs
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value61 mm	Value2-13/32"
AttributeA	Value8 mm	Value5/16"
AttributeD	Value61 mm	Value2-13/32"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value30 mm	Value1-3/16"
AttributeM	ValueM 20X1 mm	ValueM 20X1

PowerPoint PP-VIP8-2,5t-M 20X1,5 with max-length F=30 mm (8600573)

Article number: 8600573

Attribute	Value	Value
Attributeweight	Value0.93 kg	Value2.05 lbs
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value61 mm	Value2-13/32"
AttributeA	Value8 mm	Value5/16"
AttributeD	Value61 mm	Value2-13/32"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value30 mm	Value1-3/16"
AttributeM	ValueM 20X1,5 mm	ValueM 20X1,5

PowerPoint PP-VIP8-2,5t-M 20X2 with max-length F=30 mm (8600573)

Article number: 8600573

Attribute	Value	Value
Attributeweight	Value0.93 kg	Value2.05 lbs
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value61 mm	Value2-13/32"
AttributeA	Value8 mm	Value5/16"
AttributeD	Value61 mm	Value2-13/32"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value30 mm	Value1-3/16"
AttributeM	ValueM 20X2 mm	ValueM 20X2

PowerPoint PP-VIP8-2,5t-M 22X1 with max-length F=30 mm (8600573)

Article number: 8600573

Attribute	Value	Value
Attributeweight	Value0.95 kg	Value
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value61 mm	Value
AttributeA	Value8 mm	Value
AttributeD	Value61 mm	Value
AttributeE	Value55 mm	Value
AttributeF	Value30 mm	Value
AttributeM	ValueM 22X1 mm	Value

PowerPoint PP-VIP8-2,5t-M 22X1,5 with max-length F=30 mm (8600573)

Article number: 8600573

Attribute	Value	Value
Attributeweight	Value0.95 kg	Value2.09 lbs
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value61 mm	Value2-13/32"
AttributeA	Value8 mm	Value5/16"
AttributeD	Value61 mm	Value2-13/32"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value30 mm	Value1-3/16"
AttributeM	ValueM 22X1,5 mm	ValueM 22X1,5

PowerPoint PP-VIP8-2,5t-M 22X2 with max-length F=30 mm (8600573)

Article number: 8600573

Attribute	Value	Value
Attributeweight	Value0.95 kg	Value2.09 lbs
AttributeNominal WLL	Value2500 kg	Value5500 lbs
AttributeT	Value61 mm	Value2-13/32"
AttributeA	Value8 mm	Value5/16"
AttributeD	Value61 mm	Value2-13/32"
AttributeE	Value55 mm	Value2-5/32"
AttributeF	Value30 mm	Value1-3/16"
AttributeM	ValueM 22X2 mm	ValueM 22X2

PowerPoint PP-VIP10-4t-M 24X1 with max-length F=36 mm (8600574)

Article number: 8600574

Attribute	Value	Value
Attributeweight	Value1.83 kg	Value
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value77 mm	Value
AttributeA	Value10 mm	Value
AttributeD	Value78 mm	Value
AttributeE	Value70 mm	Value
AttributeF	Value36 mm	Value
AttributeM	ValueM 24X1 mm	Value

PowerPoint PP-VIP10-4t-M 24X1,5 with max-length F=36 mm (8600574)

Article number: 8600574

Attribute	Value	Value
Attributeweight	Value1.83 kg	Value4.03 lbs
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value77 mm	Value3"-1/32"
AttributeA	Value10 mm	Value3/8"
AttributeD	Value78 mm	Value3-1/16"
AttributeE	Value70 mm	Value2-3/4"
AttributeF	Value36 mm	Value1-27/64"
AttributeM	ValueM 24X1,5 mm	ValueM 24X1,5

PowerPoint PP-VIP10-4t-M 24X2 with max-length F=36 mm (8600574)

Article number: 8600574

Attribute	Value	Value
Attributeweight	Value1.83 kg	Value4.03 lbs
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value77 mm	Value3"-1/32"
AttributeA	Value10 mm	Value3/8"
AttributeD	Value78 mm	Value3-1/16"
AttributeE	Value70 mm	Value2-3/4"
AttributeF	Value36 mm	Value1-27/64"
AttributeM	ValueM 24X2 mm	ValueM 24X2

PowerPoint PP-VIP10-4t-M 27X1 with max-length F=36 mm (8600574)

Article number: 8600574

Attribute	Value	Value
Attributeweight	Value1.90 kg	Value4.19 lbs
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value77 mm	Value3"-1/32"
AttributeA	Value10 mm	Value3/8"
AttributeD	Value78 mm	Value3-1/16"
AttributeE	Value70 mm	Value2-3/4"
AttributeF	Value36 mm	Value1-27/64"
AttributeM	ValueM 27X1 mm	ValueM 27X1

PowerPoint PP-VIP10-4t-M 27X1,5 with max-length F=36 mm (8600574)

Article number: 8600574

Attribute	Value	Value
Attributeweight	Value1.90 kg	Value4.19 lbs
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value77 mm	Value3"-1/32"
AttributeA	Value10 mm	Value3/8"
AttributeD	Value78 mm	Value3-1/16"
AttributeE	Value70 mm	Value2-3/4"
AttributeF	Value36 mm	Value1-27/64"
AttributeM	ValueM 27X1,5 mm	ValueM 27X1,5

PowerPoint PP-VIP10-4t-M 27X2 with max-length F=36 mm (8600574)

Article number: 8600574

Attribute	Value	Value
Attributeweight	Value1.90 kg	Value4.19 lbs
AttributeNominal WLL	Value4000 kg	Value8800 lbs
AttributeT	Value77 mm	Value3"-1/32"
AttributeA	Value10 mm	Value3/8"
AttributeD	Value78 mm	Value3-1/16"
AttributeE	Value70 mm	Value2-3/4"
AttributeF	Value36 mm	Value1-27/64"
AttributeM	ValueM 27X2 mm	ValueM 27X2

PowerPoint PP-VIP13-5t-M 30X1 with max-length F=45 mm (8600575)

Article number: 8600575

Attribute	Value	Value
Attributeweight	Value3.50 kg	Value7.72 lbs
AttributeNominal WLL	Value5000 kg	Value11000 lbs
AttributeT	Value93 mm	Value3-21/32"
AttributeA	Value13 mm	Value1/2"
AttributeD	Value95 mm	Value3-3/4"
AttributeE	Value85 mm	Value3-11/32"
AttributeF	Value45 mm	Value1-25/32"
AttributeM	ValueM 30X1 mm	ValueM 30X1

PowerPoint PP-VIP13-5t-M 30X1,5 with max-length F=45 mm (8600575)

Article number: 8600575

Attribute	Value	Value
Attributeweight	Value3.50 kg	Value7.72 lbs
AttributeNominal WLL	Value5000 kg	Value11000 lbs
AttributeT	Value93 mm	Value3-21/32"
AttributeA	Value13 mm	Value1/2"
AttributeD	Value95 mm	Value3-3/4"
AttributeE	Value85 mm	Value3-11/32"
AttributeF	Value45 mm	Value1-25/32"
AttributeM	ValueM 30X1,5 mm	ValueM 30X1,5

PowerPoint PP-VIP13-5t-M 30X2 with max-length F=45 mm (8600575)

Article number: 8600575

Attribute	Value	Value
Attributeweight	Value3.50 kg	Value7.72 lbs
AttributeNominal WLL	Value5000 kg	Value11000 lbs
AttributeT	Value93 mm	Value3-21/32"
AttributeA	Value13 mm	Value1/2"
AttributeD	Value95 mm	Value3-3/4"
AttributeE	Value85 mm	Value3-11/32"
AttributeF	Value45 mm	Value1-25/32"
AttributeM	ValueM 30X2 mm	ValueM 30X2

PowerPoint PP-VIP13-5t-M 30X3 with max-length F=45 mm (8600575)

Article number: 8600575

Attribute	Value	Value
Attributeweight	Value3.50 kg	Value7.72 lbs
AttributeNominal WLL	Value5000 kg	Value11000 lbs
AttributeT	Value93 mm	Value3-21/32"
AttributeA	Value13 mm	Value1/2"
AttributeD	Value95 mm	Value3-3/4"
AttributeE	Value85 mm	Value3-11/32"
AttributeF	Value45 mm	Value1-25/32"
AttributeM	ValueM 30X3 mm	ValueM 30X3

So-PowerPoint PP-VIP4-0,6t-M12X1,5 with variable length (8600320) (8502177)

Article number: 8600320

Attribute	Value	Value
AttributeNominal WLL	Value600 kg	Value1320 lbs
AttributeT	Value47 mm	Value1-7/8"
AttributeA	Value4 mm	Value5/32"
AttributeD	Value42 mm	Value1-21/32"
AttributeE	Value36 mm	Value1-13/32"
AttributeF	Value12-55 mm	Value1/2" to 2-5/32"
AttributeM	ValueM12X1,5 mm	ValueM12x1,5

So-PowerPoint PP-VIP6-1t-M14X1,5 with variable length (8600326)

Article number: 8600326

Attribute	Value	Value
AttributeNominal WLL	Value1000 kg	Value2200 lbs
AttributeT	Value58 mm	Value2-9/32"
AttributeA	Value6 mm	Value15/64"
AttributeD	Value48 mm	Value1-7/8"
AttributeE	Value41 mm	Value1-5/8"
AttributeF	Value14-65 mm	Value9/16" to 2-9/16"
AttributeM	ValueM14X1,5 mm	ValueM14x1,5
