RUD sling and lashing systems

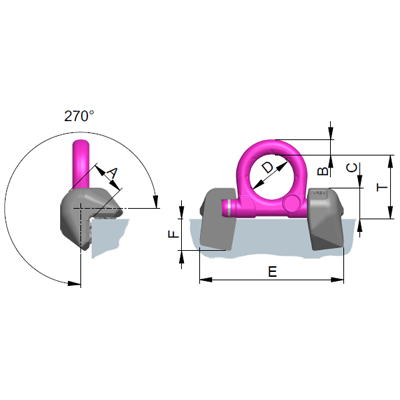

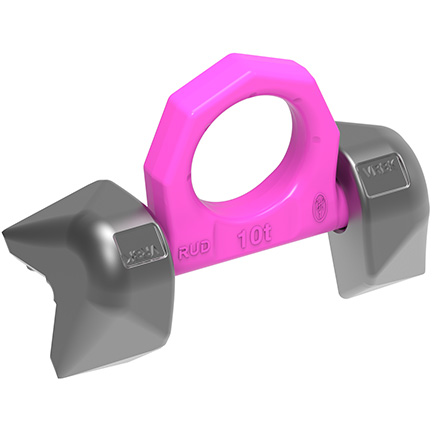

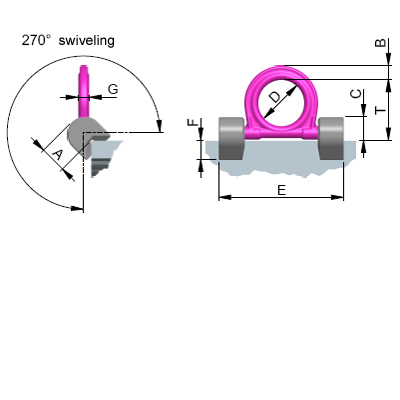

VRBK-FIX / VRBK - Load ring for welding for 90°-corners
The perfect shared-force welding solution- No complex leveling of the components to each other
- No crevice corrosion: endless HY weld seam
- Clamping spring holds all parts together
Article number: 7902149
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value1.05 kg | Value2.31 lbs |
| AttributeNominal WLL | Value4000 kg | Value8800 lbs |
| AttributeT | Value65 mm | Value2-9/16" |
| AttributeA | Value32 mm | Value1-1/4" |
| AttributeB | Value14 mm | Value9/16" |
| AttributeC | Value28 mm | Value1-1/8" |
| AttributeD | Value48 mm | Value1-7/8" |
| AttributeE | Value141 mm | Value5-9/16" |
| AttributeF | Value30 mm | Value1-3/16" |
Article number: 7902150
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value2.16 kg | Value4.76 lbs |
| AttributeNominal WLL | Value6700 kg | Value15000 lbs |
| AttributeT | Value84 mm | Value3-5/16" |
| AttributeA | Value40 mm | Value1-9/16" |
| AttributeB | Value20 mm | Value3/4" |
| AttributeC | Value35 mm | Value1-3/8" |
| AttributeD | Value60 mm | Value2-3/8" |
| AttributeE | Value181 mm | Value7-1/8" |
| AttributeF | Value34 mm | Value1-11/32" |
Article number: 7902256
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value4.40 kg | Value9.70 lbs |
| AttributeNominal WLL | Value10000 kg | Value22000 lbs |
| AttributeT | Value94 mm | Value3-11/16" |
| AttributeA | Value52 mm | Value2-1/16" |
| AttributeB | Value22 mm | Value7/8" |
| AttributeC | Value46 mm | Value1-13/16" |
| AttributeD | Value65 mm | Value2-9/16" |
| AttributeE | Value212 mm | Value8-11/32" |
| AttributeF | Value46 mm | Value1-13/16" |
Article number: 7906225
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value16.81 kg | Value37.06 lbs |
| AttributeNominal WLL | Value31500 kg | Value69300 lbs |
| AttributeT | Value177 mm | Value6-31/32" |
| AttributeA | Value89 mm | Value3-1/2" |
| AttributeB | Value42 mm | Value1-21/32" |
| AttributeC | Value78 mm | Value3-1/16" |
| AttributeD | Value130 mm | Value5-1/8" |
| AttributeE | Value394 mm | Value15-1/2" |
| AttributeF | Value70 mm | Value2-3/4" |
| AttributeG | Value42 mm | Value1-21/32" |
Article number: 7904653
| Attribute | Value | Value |
|---|---|---|
| Attributeweight | Value76.35 kg | Value168.32 lbs |
| AttributeNominal WLL | Value50000 kg | Value110000 lbs |
| AttributeT | Value303 mm | Value11-15/16" |
| AttributeA | Value134 mm | Value5-9/32" |
| AttributeB | Value70 mm | Value2-3/4" |
| AttributeC | Value118 mm | Value4-5/8" |
| AttributeD | Value230 mm | Value9-1/16" |
| AttributeE | Value626 mm | Value24-21/32" |
| AttributeF | Value96 mm | Value3-25/32" |
| AttributeG | Value54 mm | Value2-1/8" |
