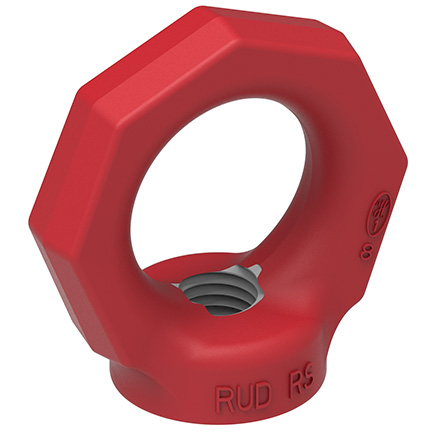

RM Eye nut, metric fine thread

considerably higher WLL in comparison to DIN 582
clear marking of the minimum WLL
comprehensive range of threads

Eye nut RM - M14X1,5 (7902750)

Article number: 7902750

Eye nut RM - M14X1,5

Attribute	Value	Value
Attributeweight	Value0.26 kg	Value0.57 lbs
AttributeNominal WLL	Value750 kg	Value1650 lbs

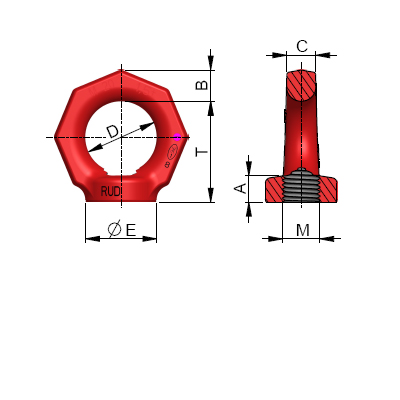

AttributeT	Value48 mm	Value1-7/8"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value15 mm	Value19/32"
AttributeC	Value14 mm	Value9/16"
AttributeD	Value35 mm	Value1-3/8"
AttributeE	Value35 mm	Value1-3/8"
AttributeM	ValueM14X1,5 mm	ValueM14X1,5

Eye nut RM - M16X1,5 (7906923)

Article number: 7906923

Eye nut RM - M16X1,5

Attribute	Value	Value
Attributeweight	Value0.26 kg	Value0.57 lbs
AttributeNominal WLL	Value800 kg	Value1760 lbs
AttributeT	Value48 mm	Value1-7/8"
AttributeA	Value13 mm	Value1/2"
AttributeB	Value15 mm	Value19/32"
AttributeC	Value14 mm	Value9/16"
AttributeD	Value35 mm	Value1-3/8"
AttributeE	Value35 mm	Value1-3/8"
AttributeM	ValueM16X1,5 mm	ValueM16X1,5

Eye nut RM - M18X1,5 (7902751)

Article number: 7902751

Eye nut RM - M18X1,5

Attribute	Value	Value
Attributeweight	Value0.40 kg	Value0.88 lbs
AttributeNominal WLL	Value1200 kg	Value2640 lbs
AttributeT	Value55 mm	Value2-5/32"
AttributeA	Value16 mm	Value5/8"
AttributeB	Value17 mm	Value43/64"
AttributeC	Value16 mm	Value5/8"
AttributeD	Value40 mm	Value1-9/16"
AttributeE	Value40 mm	Value1-9/16"
AttributeM	ValueM18X1,5 mm	ValueM18X1,5

Eye nut RM - M22X1,5 (7906924)

Article number: 7906924

Eye nut RM - M22X1,5

Attribute	Value	Value
Attributeweight	Value0.70 kg	Value1.54 lbs
AttributeNominal WLL	Value1500 kg	Value3300 lbs
AttributeT	Value70 mm	Value2-3/4"
AttributeA	Value20 mm	Value3/4"
AttributeB	Value21 mm	Value13/16"
AttributeC	Value20 mm	Value3/4"
AttributeD	Value50 mm	Value1-31/32"
AttributeE	Value50 mm	Value1-31/32"
AttributeM	ValueM22X1,5 mm	ValueM22X1,5

Eye nut RM - M24X2 (7907625)

Article number: 7907625

Eye nut RM - M24X2

Attribute	Value	Value
Attributeweight	Value0.70 kg	Value1.54 lbs
AttributeNominal WLL	Value2000 kg	Value4400 lbs
AttributeT	Value70 mm	Value2-3/4"
AttributeA	Value20 mm	Value3/4"
AttributeB	Value21 mm	Value13/16"
AttributeC	Value20 mm	Value3/4"
AttributeD	Value50 mm	Value1-31/32"
AttributeE	Value50 mm	Value1-31/32"
AttributeM	ValueM24X2 mm	ValueM24X2

Eye nut RM - M27X2 (7901995)

Article number: 7901995

Eye nut RM - M27X2

Attribute	Value	Value
Attributeweight	Value1.35 kg	Value2.98 lbs
AttributeNominal WLL	Value2000 kg	Value4400 lbs
AttributeT	Value85 mm	Value3-11/32"
AttributeA	Value25 mm	Value63/64"
AttributeB	Value26 mm	Value1"
AttributeC	Value24 mm	Value15/16"
AttributeD	Value60 mm	Value2-3/8"
AttributeE	Value60 mm	Value2-3/8"
AttributeM	ValueM27X2 mm	ValueM27X2

Eye nut RM - M48X3 (7995961)

Article number: 7995961

Eye nut RM - M48X3

Attribute	Value	Value
Attributeweight	Value5.30 kg	Value11.68 lbs
AttributeNominal WLL	Value8000 kg	Value17600 lbs
AttributeT	Value130 mm	Value5-1/8"
AttributeA	Value37 mm	Value1-7/16"
AttributeB	Value43 mm	Value1-11/16"
AttributeC	Value38 mm	Value1-1/2"
AttributeD	Value90 mm	Value3-17/32"
AttributeE	Value100 mm	Value3-15/16"
AttributeM	ValueM48X3 mm	ValueM48X3
