RUD sling and lashing systems

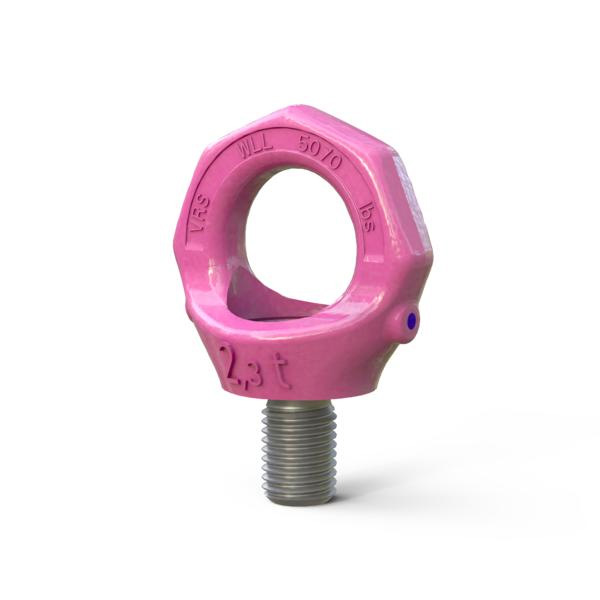

VRS STARPOINT, UNC/UN thread

Clever installation – simple alignment

360° adjustable in force direction
several times higher WLL than the DIN 580 eye bolt
Easy-Fit-Key for easy assembly and disassembly available, look type VRS-F

STARPOINT VRS - 1/4"-20UNC - 0,1t (7999105)

Article number: 7999105

Attribute	Value	Value
Attributeweight	Value0.07 kg	Value0.15 lbs
AttributeNominal WLL	Value100 kg	Value220 lbs
AttributeT	Value28 mm	Value1-1/8"
AttributeB	Value9 mm	Value11/32"
AttributeC	Value7 mm	Value9/32"
AttributeD	Value20 mm	Value3/4"
AttributeE	Value23 mm	Value29/32"
AttributeG	Value28 mm	Value1-1/8"
AttributeI	Value13 mm	Value1/2"
AttributeK	Value37 mm	Value1-7/16"
AttributeL	Value9 mm	Value11/32"
AttributeM	Value1/4"-20UNC mm	Value1/4"-20UNC
AttributeN	Value1/4" mm	Value1/4"

STARPOINT VRS - 3/8"-16UNC - 0,4t (7103959)

Article number: 7103959

Attribute	Value	Value
Attributeweight	Value0.10 kg	Value0.22 lbs
AttributeNominal WLL	Value400 kg	Value880 lbs
AttributeT	Value35 mm	Value1-3/8"
AttributeB	Value11 mm	Value7/16"
AttributeC	Value9 mm	Value11/32"
AttributeD	Value25 mm	Value63/64"
AttributeE	Value25 mm	Value63/64"
AttributeG	Value30 mm	Value1-3/16"
AttributeI	Value16,3 mm	Value41/64"
AttributeK	Value47 mm	Value1-7/8"
AttributeL	Value15 mm	Value19/32"
AttributeM	Value3/8"-16UNC mm	Value3/8"-16UNC
AttributeN	Value1/4" mm	Value1/4"

STARPOINT VRS - 7/16"-14UNC - 0,4t (7903118)

Article number: 7903118

Attribute	Value	Value
Attributeweight	Value0.12 kg	Value0.26 lbs
AttributeNominal WLL	Value400 kg	Value880 lbs
AttributeT	Value35 mm	Value1-3/8"
AttributeB	Value11 mm	Value7/16"
AttributeC	Value9 mm	Value11/32"
AttributeD	Value25 mm	Value63/64"
AttributeE	Value25 mm	Value63/64"
AttributeG	Value30 mm	Value1-3/16"
AttributeI	Value16,3 mm	Value41/64"
AttributeK	Value47 mm	Value1-7/8"
AttributeL	Value15 mm	Value19/32"
AttributeM	Value7/16"-14UNC mm	Value7/16"-14UNC
AttributeN	Value1/4" mm	Value1/4"

STARPOINT VRS - 1/2"-13UNC - 0,75t (7103960)

Article number: 7103960

Attribute	Value	Value
Attributeweight	Value0.20 kg	Value0.44 lbs
AttributeNominal WLL	Value750 kg	Value1650 lbs
AttributeT	Value42 mm	Value1-21/32"
AttributeB	Value13 mm	Value1/2"
AttributeC	Value10 mm	Value3/8"
AttributeD	Value30 mm	Value1-3/16"
AttributeE	Value30 mm	Value1-3/16"
AttributeG	Value34 mm	Value1-11/32"
AttributeI	Value19,8 mm	Value25/32"
AttributeK	Value56 mm	Value2-3/16"
AttributeL	Value19 mm	Value3/4"
AttributeM	Value1/2"-13UNC mm	Value1/2"-13UNC
AttributeN	Value5/16" mm	Value5/16"

STARPOINT VRS - 5/8"-11UNC - 1,5t (7103961)

Article number: 7103961

Attribute	Value	Value
Attributeweight	Value0.30 kg	Value0.66 lbs
AttributeNominal WLL	Value1500 kg	Value3300 lbs
AttributeT	Value49 mm	Value1-15/16"
AttributeB	Value15 mm	Value19/32"
AttributeC	Value13 mm	Value1/2"
AttributeD	Value35 mm	Value1-3/8"
AttributeE	Value36 mm	Value1-27/64"
AttributeG	Value40 mm	Value1-9/16"
AttributeI	Value23,5 mm	Value59/64"
AttributeK	Value65 mm	Value2-9/16"
AttributeL	Value24 mm	Value15/16"
AttributeM	Value5/8"-11UNC mm	Value5/8"-11UNC
AttributeN	Value3/8" mm	Value3/8"

STARPOINT VRS - 3/4"-10UNC - 2,3t (7103962)

Article number: 7103962

Attribute	Value	Value
Attributeweight	Value0.50 kg	Value1.10 lbs
AttributeNominal WLL	Value2300 kg	Value5070 lbs
AttributeT	Value58 mm	Value2-9/32"
AttributeB	Value17 mm	Value43/64"
AttributeC	Value16 mm	Value5/8"
AttributeD	Value40 mm	Value1-9/16"
AttributeE	Value41 mm	Value1-5/8"
AttributeG	Value50 mm	Value1-31/32"
AttributeI	Value29,3 mm	Value1-5/32"
AttributeK	Value76 mm	Value3"
AttributeL	Value29 mm	Value1-5/32"
AttributeM	Value3/4"-10UNC mm	Value3/4"-10UNC
AttributeN	Value1/2" mm	Value1/2"

STARPOINT VRS - 7/8"-9UNC - 2,3t (7103963)

Article number: 7103963

Attribute	Value	Value
Attributeweight	Value0.60 kg	Value1.32 lbs
AttributeNominal WLL	Value2300 kg	Value5070 lbs
AttributeT	Value58 mm	Value2-9/32"
AttributeB	Value17 mm	Value43/64"
AttributeC	Value16 mm	Value5/8"
AttributeD	Value40 mm	Value1-9/16"
AttributeE	Value41 mm	Value1-5/8"
AttributeG	Value50 mm	Value1-31/32"
AttributeI	Value29,3 mm	Value1-5/32"
AttributeK	Value76 mm	Value3"
AttributeL	Value33 mm	Value1-5/16"
AttributeM	Value7/8"-9UNC mm	Value7/8"-9UNC
AttributeN	Value1/2" mm	Value1/2"

STARPOINT VRS - 1"-8UNC - 3,2t (7103964)

Article number: 7103964

Attribute	Value	Value
Attributeweight	Value0.90 kg	Value1.98 lbs
AttributeNominal WLL	Value3200 kg	Value7050 lbs
AttributeT	Value70 mm	Value2-3/4"
AttributeB	Value20 mm	Value3/4"
AttributeC	Value19 mm	Value3/4"
AttributeD	Value49 mm	Value1-15/16"
AttributeE	Value51 mm	Value2"
AttributeG	Value60 mm	Value2-3/8"
AttributeI	Value35 mm	Value1-3/8"
AttributeK	Value92 mm	Value3-5/8"
AttributeL	Value36 mm	Value1-27/64"
AttributeM	Value1"-8UNC mm	Value1"-8UNC
AttributeN	Value9/16" mm	Value9/16"

STARPOINT VRS - 1 1/8"-8UN - 3,2t (7999385)

Article number: 7999385

Attribute	Value	Value
Attributeweight	Value1.00 kg	Value2.20 lbs
AttributeNominal WLL	Value3200 kg	Value7050 lbs
AttributeT	Value70 mm	Value2-3/4"
AttributeB	Value20 mm	Value3/4"
AttributeC	Value19 mm	Value3/4"
AttributeD	Value49 mm	Value1-15/16"
AttributeE	Value51 mm	Value2"
AttributeG	Value60 mm	Value2-3/8"
AttributeI	Value35 mm	Value1-3/8"
AttributeK	Value92 mm	Value3-5/8"
AttributeL	Value36 mm	Value1-27/64"
AttributeM	Value1-1/8"-8UN mm	Value1-1/8"-8UN
AttributeN	Value9/16" mm	Value9/16"

STARPOINT VRS - 1 1/8"-7UNC - 3,2t (7999384)

Article number: 7999384

Attribute	Value	Value
Attributeweight	Value1.00 kg	Value2.20 lbs
AttributeNominal WLL	Value3200 kg	Value7050 lbs
AttributeT	Value70 mm	Value2-3/4"
AttributeB	Value20 mm	Value3/4"
AttributeC	Value19 mm	Value3/4"
AttributeD	Value49 mm	Value1-15/16"
AttributeE	Value51 mm	Value2"
AttributeG	Value60 mm	Value2-3/8"
AttributeI	Value35 mm	Value1-3/8"
AttributeK	Value92 mm	Value3-5/8"
AttributeL	Value36 mm	Value1-27/64"
AttributeM	Value1-1/8"-7UNC mm	Value1-1/8"-7UNC
AttributeN	Value9/16" mm	Value9/16"

STARPOINT VRS - 1 1/4"-7UNC - 4,5t (7103965))

Article number: 7103965

Attribute	Value	Value
Attributeweight	Value1.70 kg	Value3.75 lbs
AttributeNominal WLL	Value4500 kg	Value9920 lbs
AttributeT	Value87 mm	Value3-7/16"
AttributeB	Value26 mm	Value1"
AttributeC	Value24 mm	Value15/16"
AttributeD	Value60 mm	Value2-3/8"
AttributeE	Value66 mm	Value2-5/8"
AttributeG	Value75 mm	Value2-15/16"
AttributeI	Value44 mm	Value1-3/4"
AttributeK	Value114 mm	Value4-1/2"
AttributeL	Value48 mm	Value1-7/8"
AttributeM	Value1 1/4"-7UNC mm	Value1 1/4"-7UNC
AttributeN	Value3/4" mm	Value3/4"

STARPOINT VRS - 1 1/2"-8UN - 7t (7991917)

Article number: 7991917

Attribute	Value	Value
Attributeweight	Value2.90 kg	Value6.39 lbs
AttributeNominal WLL	Value7000 kg	Value15430 lbs
AttributeT	Value103 mm	Value4-1/16"
AttributeB	Value32 mm	Value1-1/4"
AttributeC	Value29 mm	Value1-5/32"
AttributeD	Value72 mm	Value2-27/32"
AttributeE	Value75 mm	Value2-15/16"
AttributeG	Value90 mm	Value3-17/32"
AttributeI	Value50 mm	Value1-31/32"
AttributeK	Value135 mm	Value5-5/16"
AttributeL	Value54 mm	Value2-1/8"
AttributeM	Value1 1/2"-8UN mm	Value1 1/2"-8UN
AttributeN	Value7/8" mm	Value

STARPOINT VRS - 1 1/2"-6UNC - 7t (7103966)

Article number: 7103966

Attribute	Value	Value
Attributeweight	Value2.90 kg	Value6.39 lbs
AttributeNominal WLL	Value7000 kg	Value15430 lbs
AttributeT	Value103 mm	Value4-1/16"
AttributeB	Value32 mm	Value1-1/4"
AttributeC	Value29 mm	Value1-5/32"
AttributeD	Value72 mm	Value2-27/32"
AttributeE	Value76 mm	Value3"
AttributeG	Value97 mm	Value3-13/16"
AttributeI	Value53 mm	Value2-3/32"
AttributeK	Value135 mm	Value5-5/16"
AttributeL	Value54 mm	Value2-1/8"
AttributeM	Value1 1/2"-6UNC mm	Value1 1/2"-6UNC
AttributeN	Value7/8" mm	Value7/8"

STARPOINT VRS - 1 3/4"-5UNC - 9t (7103967)

Article number: 7103967

Attribute	Value	Value
Attributeweight	Value4.60 kg	Value10.14 lbs
AttributeNominal WLL	Value9000 kg	Value19480 lbs
AttributeT	Value121 mm	Value4-3/4"
AttributeB	Value37 mm	Value1-7/16"
AttributeC	Value333 mm	Value13-1/8"
AttributeD	Value84 mm	Value3-5/16"
AttributeE	Value86 mm	Value3-3/8"
AttributeG	Value111 mm	Value4-13/32"
AttributeI	Value62 mm	Value2-7/16"
AttributeK	Value158 mm	Value6-1/4"
AttributeL	Value63 mm	Value2-15/32"
AttributeM	Value1 3/4"-5UNC mm	Value1 3/4"-5UNC
AttributeN	Value1" mm	Value1"

STARPOINT VRS - 2"-4,5UNC - 12t (7103968)

Article number: 7103968

Attribute	Value	Value
Attributeweight	Value7.00 kg	Value15.43 lbs
AttributeNominal WLL	Value12000 kg	Value24640 lbs
AttributeT	Value138 mm	Value5-7/16"
AttributeB	Value42 mm	Value1-21/32"
AttributeC	Value42 mm	Value1-21/32"
AttributeD	Value94 mm	Value3-11/16"
AttributeE	Value100 mm	Value3-15/16"
AttributeG	Value128 mm	Value5"
AttributeI	Value70 mm	Value2-3/4"
AttributeK	Value180 mm	Value7-1/16"
AttributeL	Value72 mm	Value2-27/32"
AttributeM	Value2"-4,5UNC mm	Value2"-4,5UNC
AttributeN	Value1-1/8" mm	Value1-1/8"
