RUD sling and lashing systems

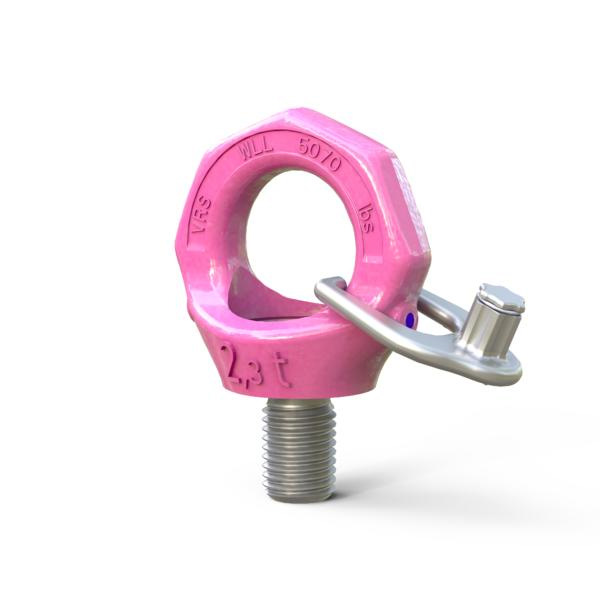

VRS-F/VRS STARPOINT, metric fine thread

Clever installation – simple alignment

360° adjustable in force direction
several times higher WLL than the DIN 580 eye bolt
Easy-Fit-Key for easy assembly and disassembly

Vario-Starpoint VRS-F M8X1 (7904332)

Article number: 7904332

Vario-Starpoint VRS-F M8X1

Attribute	Value	Value
Attributeweight	Value0.12 kg	Value0.26 lbs
AttributeNominal WLL	Value300 kg	Value660 lbs
AttributeT	Value35 mm	Value1-3/8"
AttributeB	Value11 mm	Value7/16"
AttributeC	Value9 mm	Value11/32"
AttributeD	Value25 mm	Value63/64"
AttributeE	Value25 mm	Value63/64"
AttributeG	Value30 mm	Value1-3/16"
AttributeI	Value16,3 mm	Value41/64"
AttributeK	Value47 mm	Value1-7/8"
AttributeL	Value12 mm	Value15/32"
AttributeM	ValueM8X1 mm	ValueM8X1
AttributeN	Value6 mm	Value15/64"

Vario-Starpoint VRS-F M12X1,5 (7992929)

Article number: 7992929

Vario-Starpoint VRS-F M12X1,5

Attribute	Value	Value
Attributeweight	Value0.20 kg	Value0.44 lbs
AttributeNominal WLL	Value750 kg	Value1650 lbs
AttributeT	Value42 mm	Value1-21/32"
AttributeB	Value13 mm	Value1/2"
AttributeC	Value10 mm	Value3/8"
AttributeD	Value30 mm	Value1-3/16"
AttributeE	Value30 mm	Value1-3/16"
AttributeG	Value34 mm	Value1-11/32"
AttributeI	Value19,8 mm	Value25/32"
AttributeK	Value56 mm	Value2-3/16"
AttributeL	Value18 mm	Value23/32"
AttributeM	ValueM12X1,5 mm	ValueM12X1,5
AttributeN	Value8 mm	Value5/16"

Vario-Starpoint VRS-F M16X1,5 (7902676)

Article number: 7902676

Vario-Starpoint VRS-F M16X1,5

Attribute	Value	Value
Attributeweight	Value0.30 kg	Value0.66 lbs
AttributeNominal WLL	Value1500 kg	Value3300 lbs
AttributeT	Value49 mm	Value1-15/16"
AttributeB	Value15 mm	Value19/32"
AttributeC	Value13 mm	Value1/2"
AttributeD	Value35 mm	Value1-3/8"
AttributeE	Value36 mm	Value1-27/64"
AttributeG	Value40 mm	Value1-9/16"
AttributeI	Value23,5 mm	Value59/64"
AttributeK	Value65 mm	Value2-9/16"
AttributeL	Value24 mm	Value15/16"
AttributeM	ValueM16X1,5 mm	ValueM16X1,5
AttributeN	Value10 mm	Value3/8"

Vario-Starpoint VRS-F M20X2 (7992634)

Article number: 7992634

Vario-Starpoint VRS-F M20X2

Attribute	Value	Value
Attributeweight	Value0.50 kg	Value1.10 lbs
AttributeNominal WLL	Value2300 kg	Value5070 lbs
AttributeT	Value58 mm	Value2-9/32"
AttributeB	Value17 mm	Value43/64"
AttributeC	Value16 mm	Value5/8"
AttributeD	Value40 mm	Value1-9/16"
AttributeE	Value41 mm	Value1-5/8"
AttributeG	Value50 mm	Value1-31/32"
AttributeI	Value29,3 mm	Value1-5/32"
AttributeK	Value76 mm	Value3"
AttributeL	Value30 mm	Value1-3/16"
AttributeM	ValueM20X2 mm	ValueM20X2
AttributeN	Value12 mm	Value15/32"

Vario-Starpoint VRS-F M24X2 (7992566)

Article number: 7992566

Vario-Starpoint VRS-F M24X2

Attribute	Value	Value
Attributeweight	Value1.00 kg	Value2.20 lbs
AttributeNominal WLL	Value3200 kg	Value7050 lbs
AttributeT	Value70 mm	Value2-3/4"
AttributeB	Value20 mm	Value3/4"
AttributeC	Value19 mm	Value3/4"
AttributeD	Value49 mm	Value1-15/16"
AttributeE	Value51 mm	Value2"
AttributeG	Value60 mm	Value2-3/8"
AttributeI	Value35 mm	Value1-3/8"
AttributeK	Value92 mm	Value3-5/8"
AttributeL	Value36 mm	Value1-27/64"
AttributeM	ValueM24X2 mm	ValueM24X2
AttributeN	Value14 mm	Value9/16"

Vario-Starpoint VRS-F M30X2 (7991856)

Article number: 7991856

Vario-Starpoint VRS-F M30X2

Attribute	Value	Value
Attributeweight	Value1.70 kg	Value3.75 lbs
AttributeNominal WLL	Value4500 kg	Value9920 lbs
AttributeT	Value87 mm	Value3-7/16"
AttributeB	Value26 mm	Value1"
AttributeC	Value24 mm	Value15/16"
AttributeD	Value60 mm	Value2-3/8"
AttributeE	Value66 mm	Value2-5/8"
AttributeG	Value75 mm	Value2-15/16"
AttributeI	Value44 mm	Value1-3/4"
AttributeK	Value114 mm	Value4-1/2"
AttributeL	Value45 mm	Value1-25/32"
AttributeM	ValueM30X2 mm	ValueM30X2
AttributeN	Value17 mm	Value43/64"

Vario-Starpoint VRS-F M36X3 (7992728)

Article number: 7992728

Vario-Starpoint VRS-F M36X3

Attribute	Value	Value
Attributeweight	Value3.50 kg	Value7.72 lbs
AttributeNominal WLL	Value7000 kg	Value15430 lbs
AttributeT	Value103 mm	Value4-1/16"
AttributeB	Value32 mm	Value1-1/4"
AttributeC	Value29 mm	Value1-5/32"
AttributeD	Value72 mm	Value2-27/32"
AttributeE	Value76 mm	Value3"
AttributeG	Value97 mm	Value3-13/16"
AttributeI	Value53 mm	Value2-3/32"
AttributeK	Value135 mm	Value5-5/16"
AttributeL	Value54 mm	Value2-1/8"
AttributeM	ValueM36X3 mm	ValueM36X3
AttributeN	Value22 mm	Value7/8"
